Embedded Architecture Analysis

IGS’s anti-piracy technology isn’t particularly hard, but it’s extremely weird—probably because the code quality is terrible.

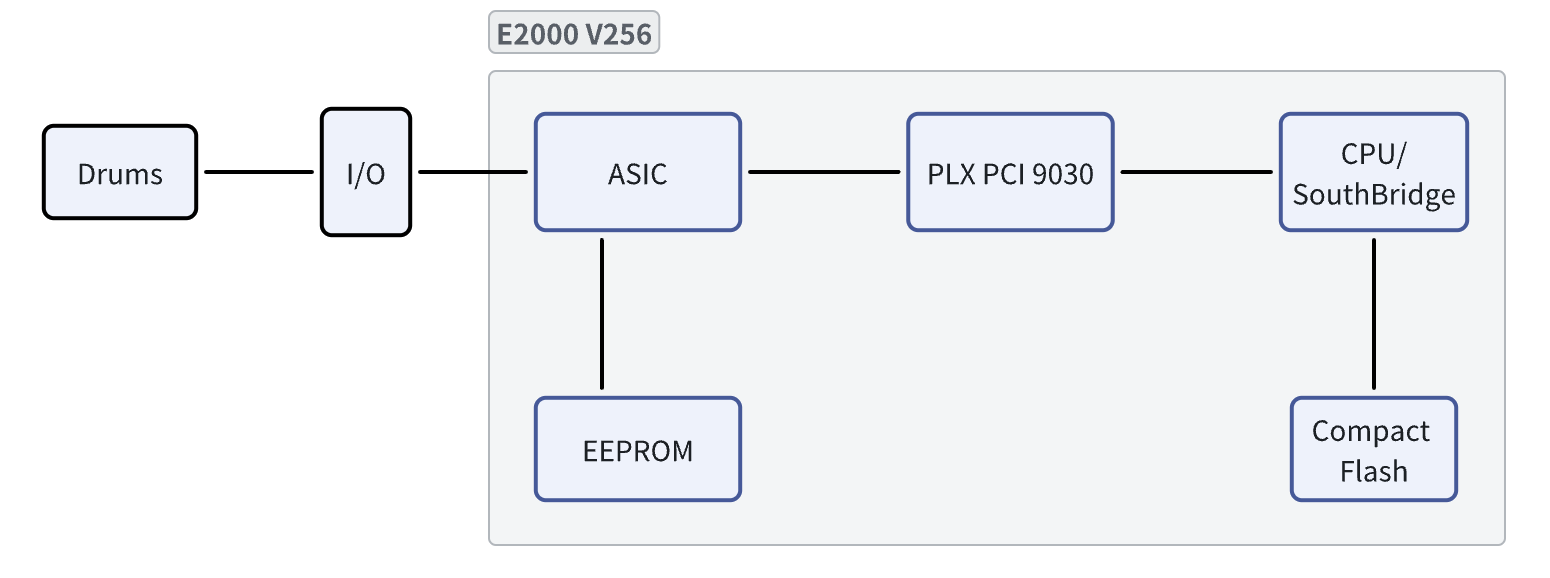

IGS E2000 is essentially a combination of PC + game baseboard (designed by Advantech). It has to consider both anti-piracy and software reusability. The ASIC is basically a closed-box computational module: putting the game’s key logic inside it both improves performance and makes cracking harder.

Main Executable Flow Analysis

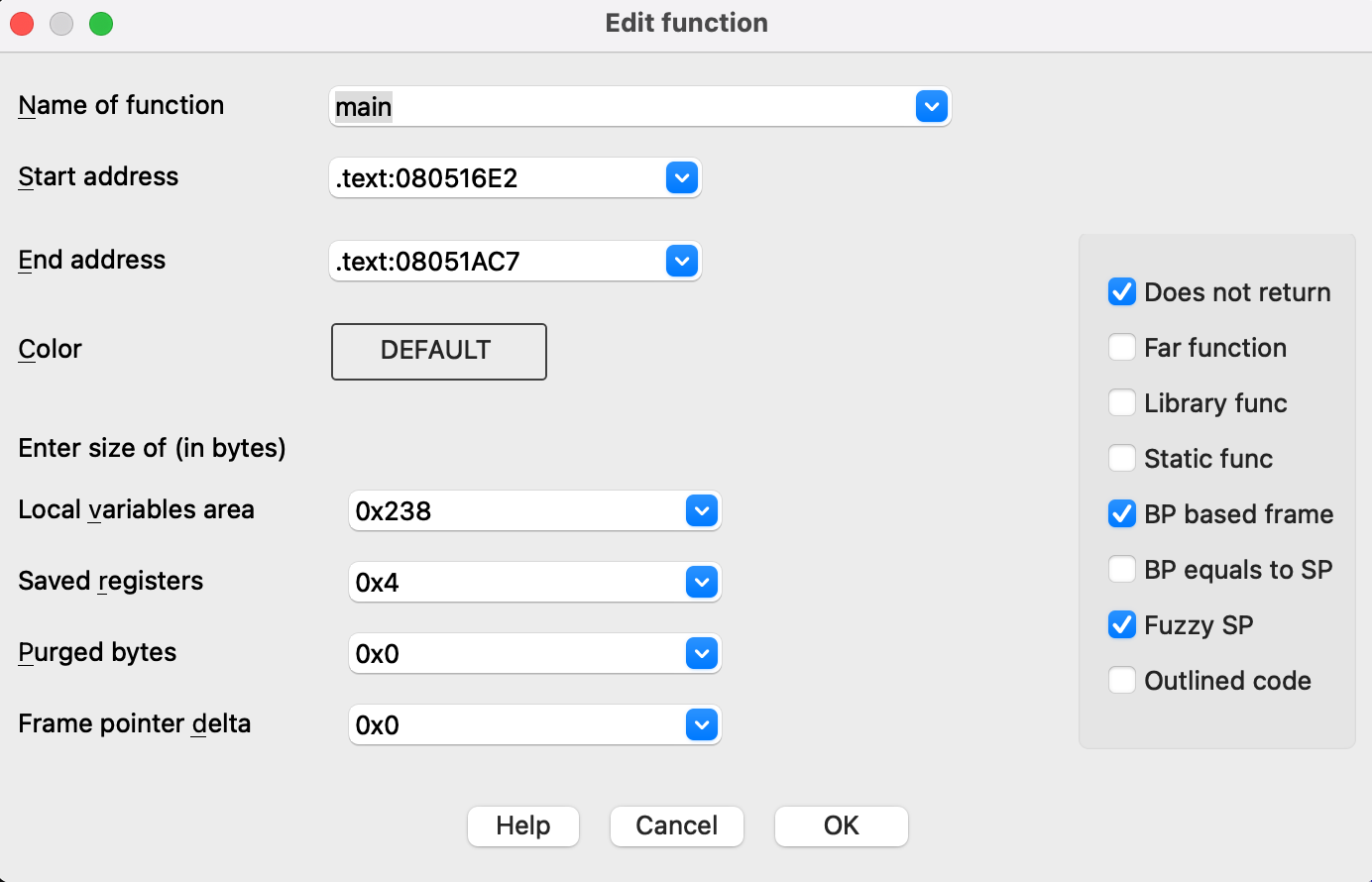

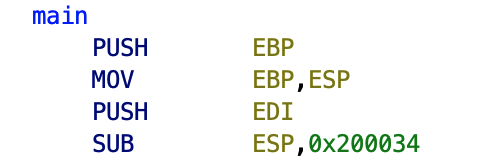

The main game executable allocates a stack frame of 0x200034, where the buffer alone takes 0x200000. And after allocating this stack, it never restores it. This causes IDA Pro to fail to decompile—no idea if this is intentional.

The workaround is to patch the buffer size, shrink the function stack frame, undefine the function, and then re-identify it; then it can be decompiled successfully.

1. During mount_root in the kernel and when the game starts, it verifies BIOS version info. The developer claimed it was “getting a CRC result”, but I searched everywhere CRC appears and couldn’t find any CRC computation logic related to anti-piracy at all.
2. If BIOS validation fails, it then checks PCI driver information. If that fails, it seems to do nothing—but many identical validation stubs are inserted elsewhere, and failure there will block execution.
3. System initialization: display, audio, graphics, text, language, ASIC, timer, PLXPCI, game, music, controllers, camera, bookkeeping, control, coin, mixer, etc.
4. Refresh the ASIC 4 times, why???

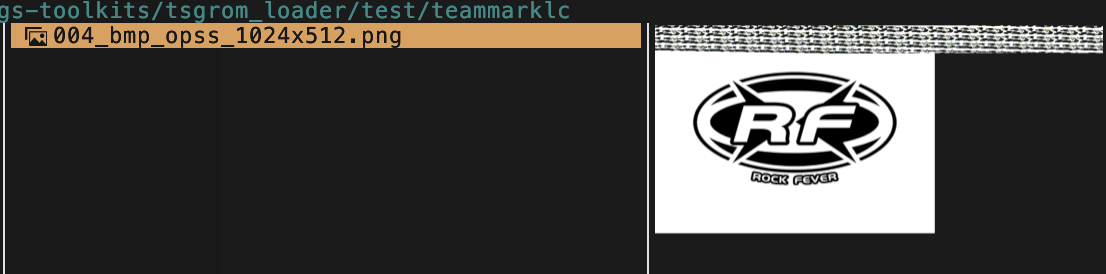

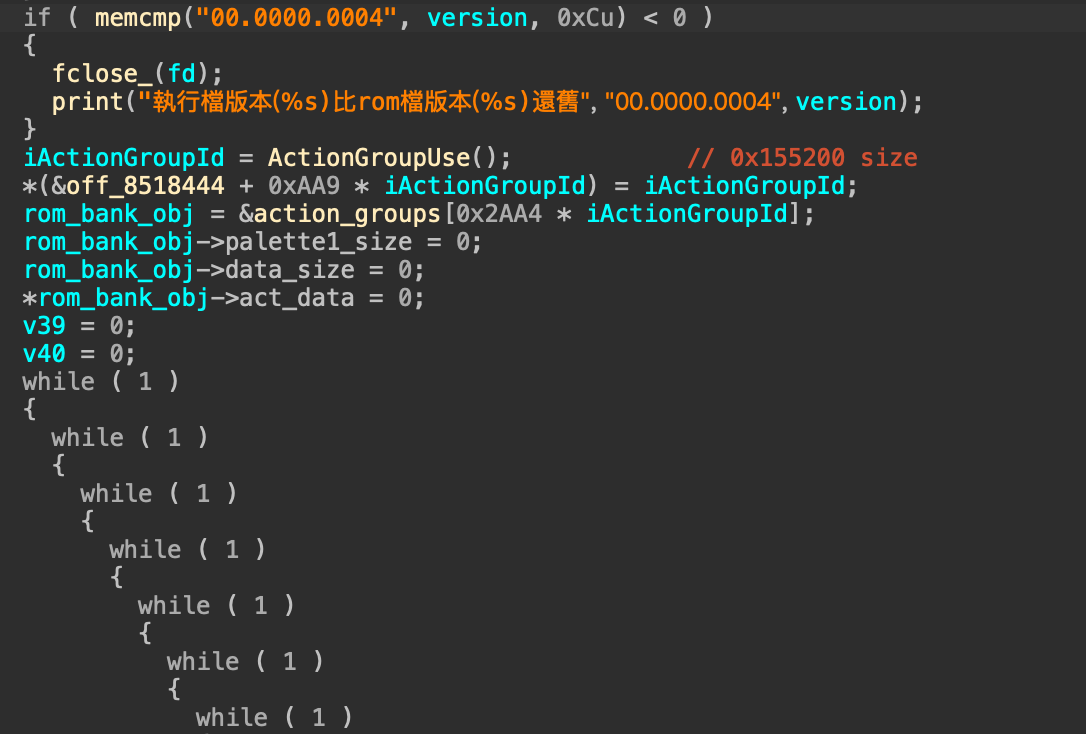

5. Load the base action file (TSGROM format); each load refreshes the ASIC once.
6. Game version validation, show the first screen, load fonts, load sounds.
7. Load the card reader.

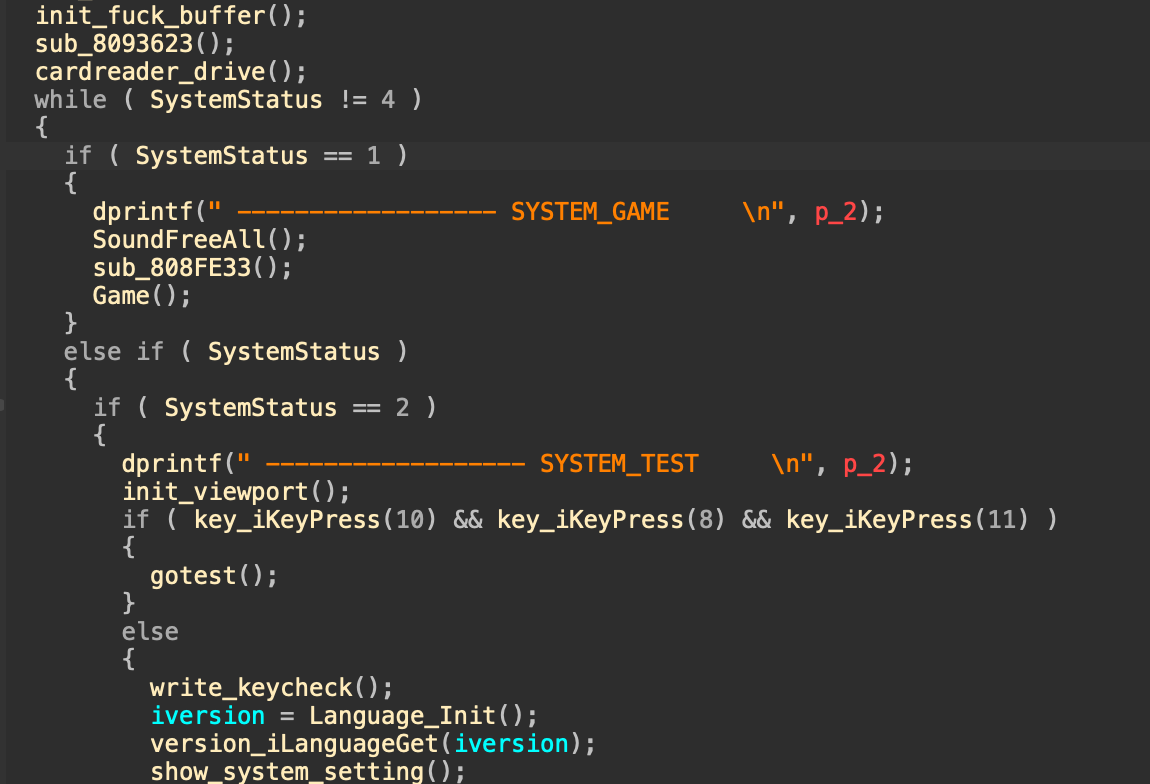

8. Game loop: 4 states (Game, Test, Setting, Demo), controllable via the ASIC.

The game was developed with SDL 1.2.7. SDL (Simple DirectMedia Layer) is a cross-platform multimedia development library, mainly providing low-level access to audio, input devices (keyboard/mouse/gamepad), and graphics hardware. However, its performance is relatively low and is only suitable for 2D games. Percussion Master 2008 is a 2D game. Speed Driver 2 is a 3D game, so the difference between the two may be significant.

At every place in the main executable where it interacts with the ASIC, the developer inserted a stub; I’ll temporarily call it RealTimeEvent. It should be a unified event handler: every logic change and animation change requires refreshing events. It’s used to implement various complex control functions and also bundles some anti-piracy behavior. Honestly, the code quality is awful—each call does a lot of computation, performance is poor, and it feels like building a SPA in pure JS + HTML.

Logic of the state-check stub:

1. Update clock
2. Timer check
3. Action handling
4. Music handling
5. Audio handling
6. Key status and control input
7. Bookkeeping
8. Coin handling
9. PLX PCI status handling
10. SDL event handling
11. Draw dynamic pentagon animation
12. PCI control write
13. ASIC 27 command write
14. PCI data read
15. Graphics refresh

Region Initialization

Percussion Master 2008 supports 7 regions and 3 languages: Simplified Chinese, Traditional Chinese, and English.

ROIO BIOS Info Verification

The kernel runs a driver /dev/roio. The game compares it against a built-in version info table to perform validation. Both the kernel and the game embed tables. The likely workflow is that the developer parsed BIOS information using some tooling and then hard-coded physical offsets into both the game and the kernel.

The BIOS info table structure differs slightly between kernel and main executable. The kernel uses 4-byte alignment, but the underlying idea is the same.

Game BIOS table:

struct bios_item {
    unsigned int index;  // index
    unsigned char table_cmp_max_count;
    unsigned int value_addr; // base addr 0xC0000000
    unsigned char char_cmp_max_count;
    unsigned int name_addr;
}

Kernel BIOS table:

struct bios_item {
    unsigned int index;  // index
    unsigned int table_cmp_max_count;
    unsigned int value_addr; // base addr 0xC0000000
    unsigned int char_cmp_max_count;
    unsigned int name_addr;
}

The comparison logic is also very simple:

Step 1: iterate the program’s built-in BIOS table to get the version string address, the target string physical address, iteration counts, etc.
Step 2: perform an IOCTL call to /dev/roio to compare the specified offset within System ROM against the program’s built-in string. If any single character matches, it passes. That’s unbelievably dumb.

This kernel only allows running on 4 motherboard variants, but the game allows running on more devices, so it needs to validate whether the main executable, kernel, and motherboard match. This is an anti-piracy mechanism—just patch it out.

Based on my analysis, the addresses and version strings are as follows; all addresses start from 0x0f0000.

# Kernel + Game
0x0F086E   i852-W83627HF
0x0FEC7C   i852-W83627HF
0x0FEC8A   6A69YILTC-00
0x0FECDE   Ph6A69YILT

# Game
0x0FE0C1   L4S5MG3
0x0FEC84   6A6IXE19C-00
0x0FECDF   I6A6IXE19
0x0FE0C1   L4S5MG/651+
0x0F006D   nVidia-nForce
0x0FECDE   Ph6A61BPA9
0x0FEC8A   6A61B_00C-00
0x0FECDE   Ph6A61B_00

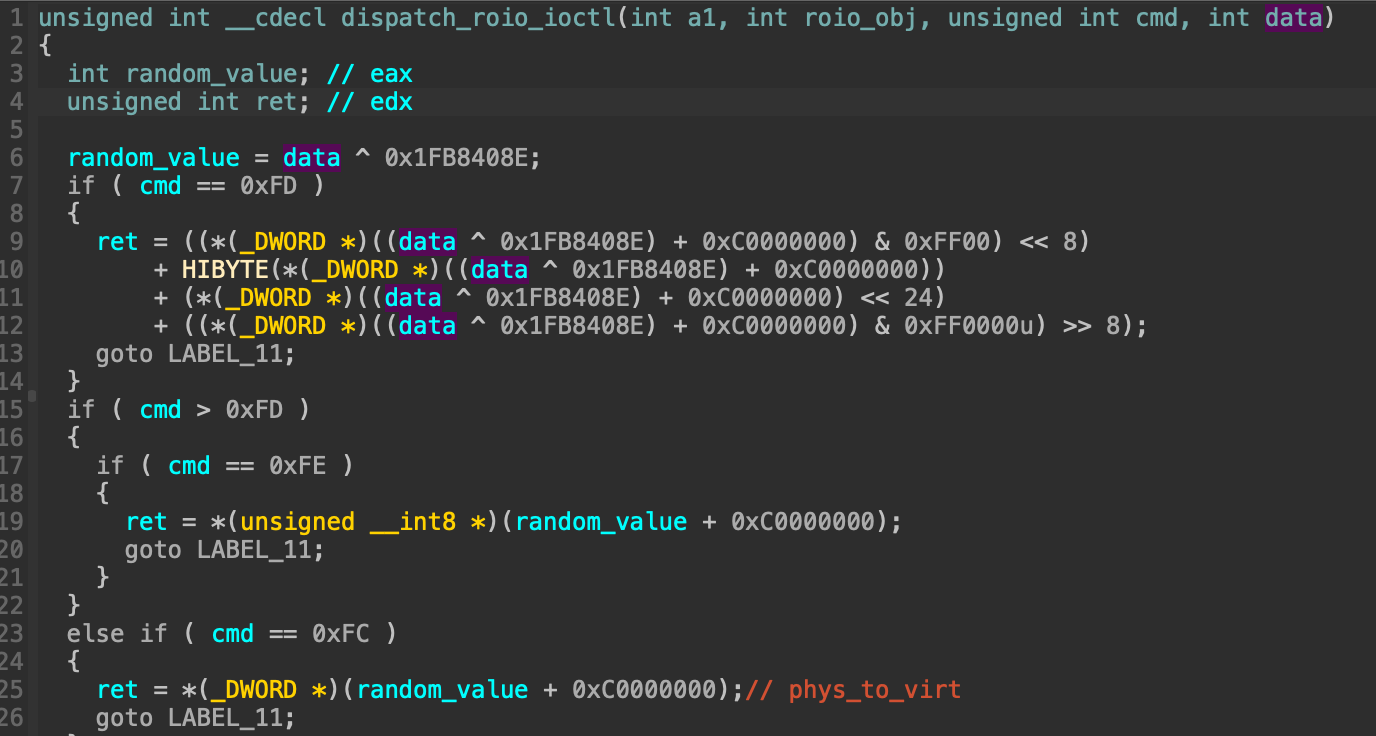

Next is the ROIO driver. Most of its code has hidden anti-copy stubs and uses XOR. The performance impact is minimal, and it prevents copying game A’s program into game B’s system.

• Input mask: 0x1FB8408E
• Return mask: 0xC2E83AB8

ROIO has three magic numbers:

• 0xfc: read 32-bit value at target address, little-endian
• 0xfd: read 32-bit value at target address, big-endian
• 0xfe: read 8-bit value at target address

Finally, XOR with 0xC2E83AB8.

Here data is used as an offset. The base is 0xc0000000, and it adds the BIOS info value because x86 uses paging, so CPU memory access goes through virtual addresses. Linux i386 virtual address offset definitions are:

#define __PAGE_OFFSET (0xC0000000)
#define __pa(x)			((unsigned long) (x) - PAGE_OFFSET)
#define __va(x)			((void *)((unsigned long) (x) + PAGE_OFFSET))

From IOMEM mapping, you can also see the BIOS info address is located in System ROM:

# cat /proc/iomem
00000000-0009fbff : System RAM
0009fc00-0009ffff : reserved
000a0000-000bffff : Video RAM area
000c0000-000c7fff : Video ROM
000f0000-000fffff : System ROM
00100000-1feeffff : System RAM
  00100000-0050aab5 : Kernel code
  0050aab6-006f8f27 : Kernel data
1fef0000-1fefffff : reserved
1ff00000-1ff003ff : Intel Corp. 82801DB Ultra ATA Storage Controller
d0000000-dfffffff : PCI Bus #01
  d0000000-dfffffff : PCI device 10de:0221 (nVidia Corporation)
e0000000-e7ffffff : Intel Corp. 82852/855GM Host Bridge
e8000000-eaffffff : PCI Bus #01
  e8000000-e8ffffff : PCI device 10de:0221 (nVidia Corporation)
    e8000000-e8ffffff : nvidia
  e9000000-e9ffffff : PCI device 10de:0221 (nVidia Corporation)
eb000000-eb01ffff : PLX Technology, Inc. PCI <-> IOBus Bridge Hot Swap
eb020000-eb02007f : PLX Technology, Inc. PCI <-> IOBus Bridge Hot Swap
eb021000-eb0213ff : PLX Technology, Inc. PCI <-> IOBus Bridge Hot Swap
eb022000-eb022fff : Intel Corp. 82801BD PRO/100 VE (CNR) Ethernet Controller
  eb022000-eb022fff : e100
eb100000-eb1003ff : Intel Corp. 82801DB USB2
  eb100000-eb1003ff : ehci_hcd
eb101000-eb1011ff : Intel Corp. 82801DB AC'97 Audio Controller
  eb101000-eb1011ff : Intel 82801DB-ICH4
eb102000-eb1020ff : Intel Corp. 82801DB AC'97 Audio Controller
  eb102000-eb1020ff : Intel 82801DB-ICH4
fec00000-ffffffff : reserved

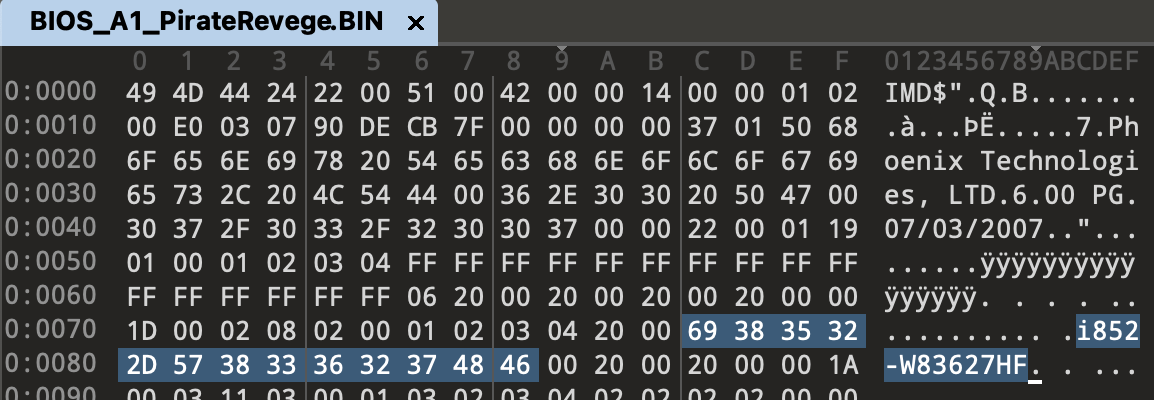

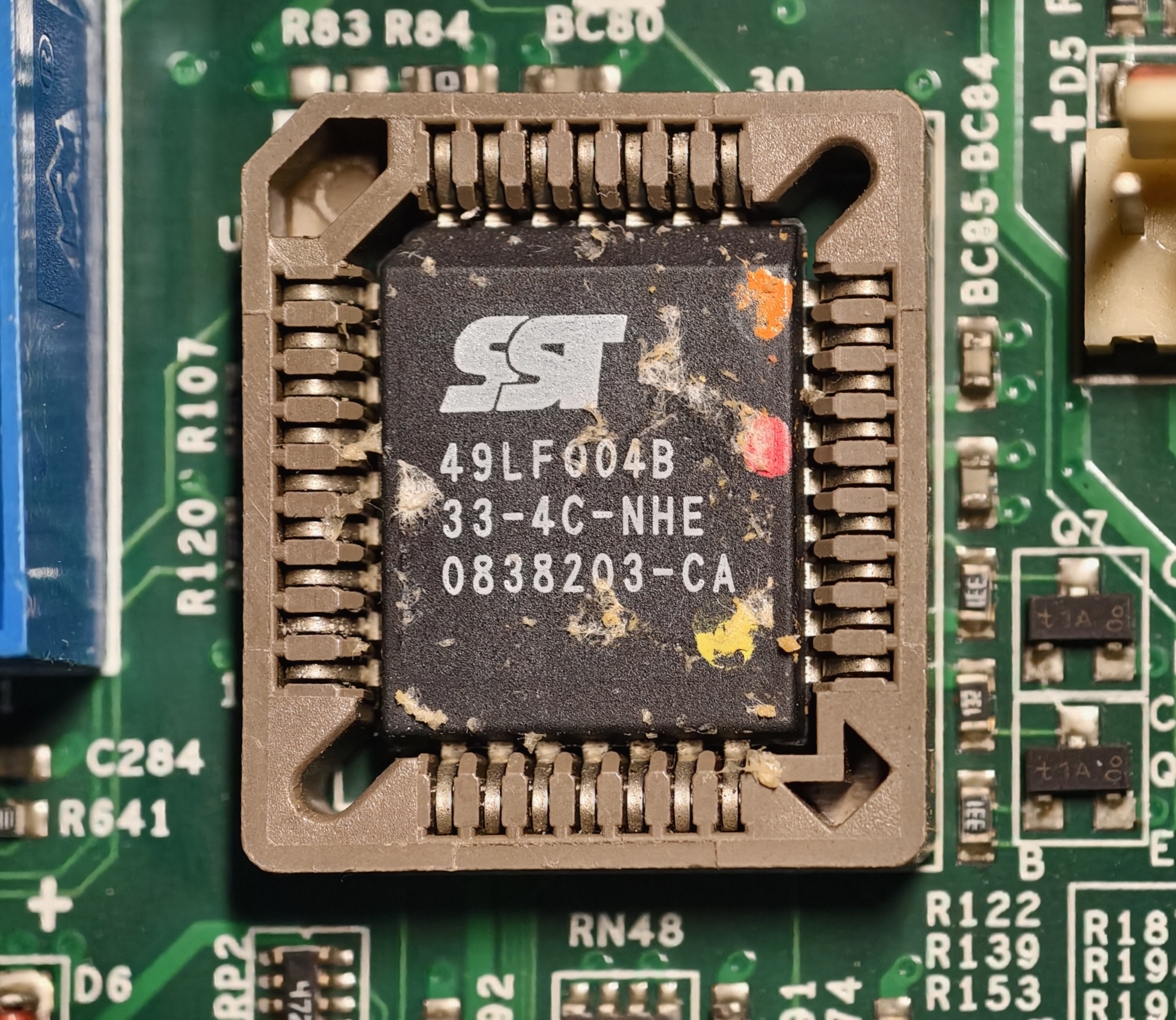

The BIOS chip package is PLCC 32, and it was successfully dumped with RT809H.

After the system boots, some BIOS ROM data is parsed into memory—not a 1:1 copy—with an offset address of 0xF0000.

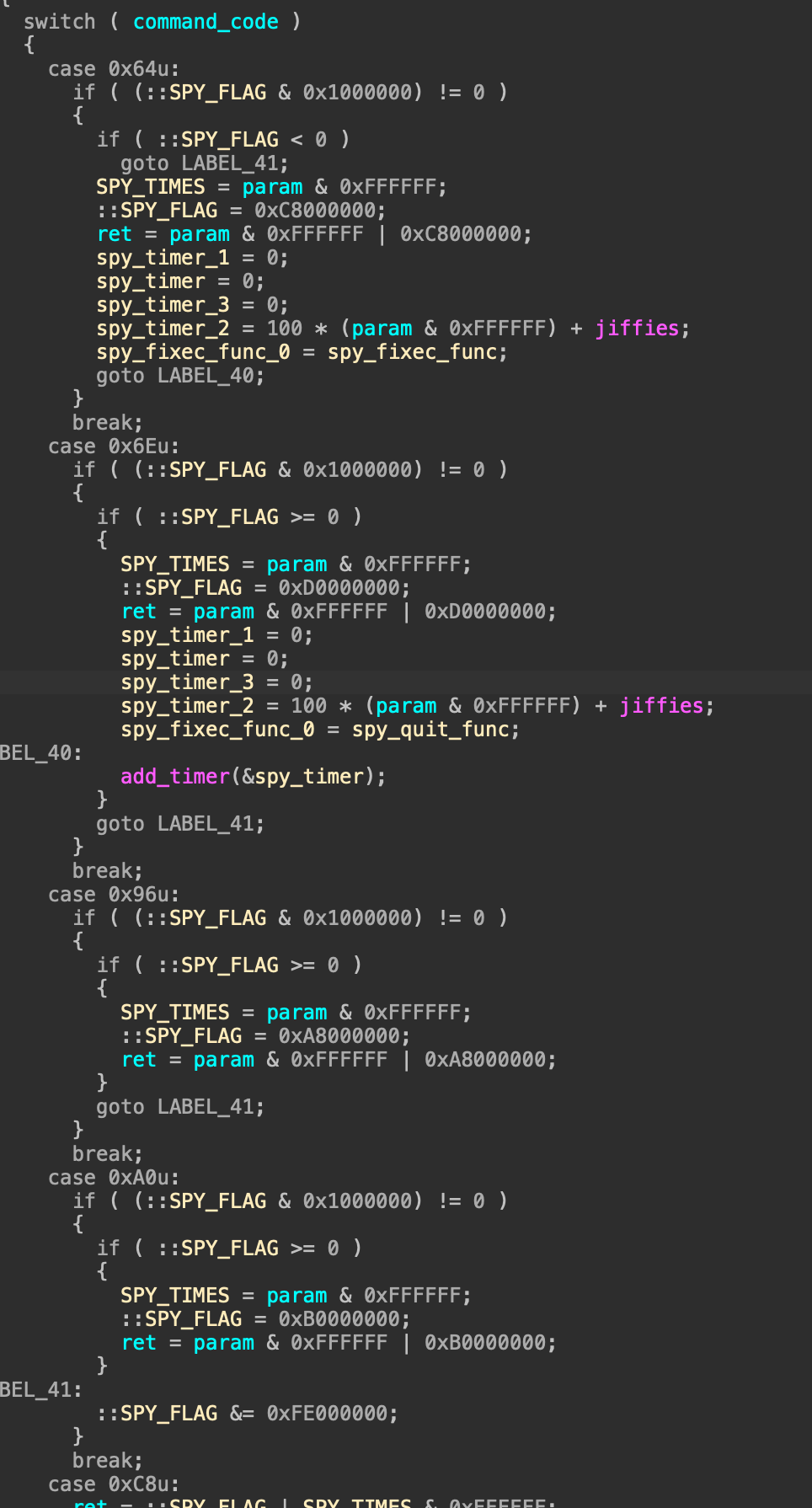

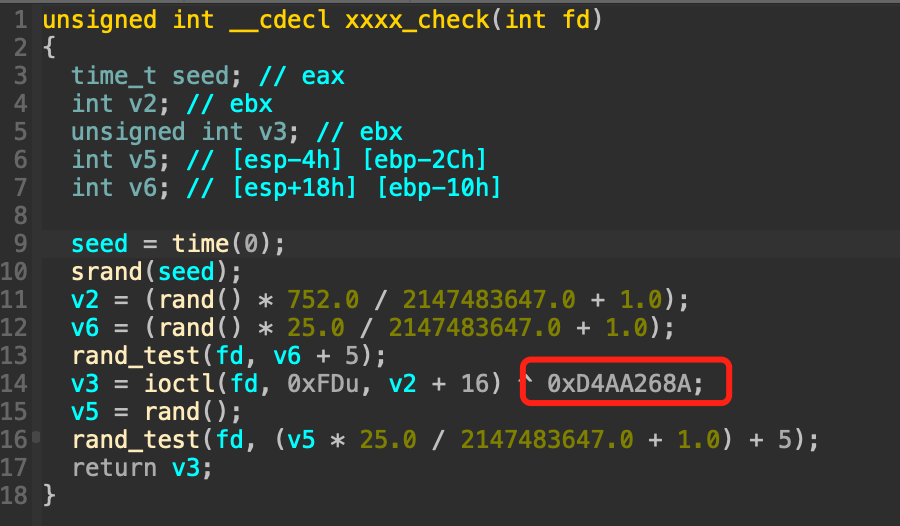

PCCard Random Value Check

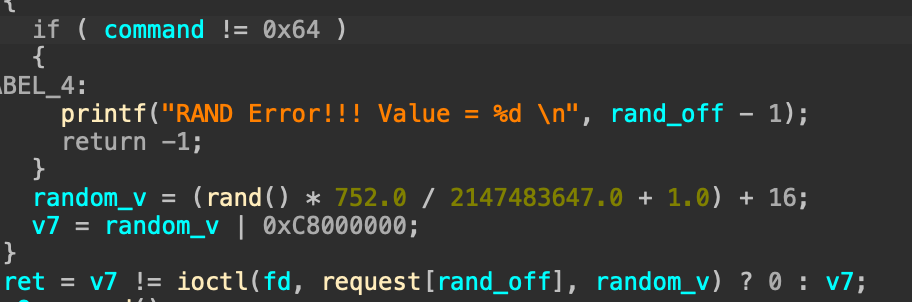

I truly don’t understand what the purpose of this code is. There’s a “SPY” keyword in the driver code; maybe it’s a hidden stub intended for anti-sniffing? It’s triggered when launching the program, initializing the game, and printing logs. If the BIOS check above fails, this check is also triggered. It requests /dev/pccard0 via ioctl—either to obtain the result or to not obtain it.

Request 0 list, used for comparing results. The list has 4 members corresponding to related offsets. It randomly selects one of the four, attaches a random number in the range [17, 768], computes locally, sends it to the driver to “execute”, and receives it back. In fact, PCI doesn’t truly participate.

0x64 基址：0xC8000000 设置 SPY_FLAG spy_fixec_func
0x6e 基址：0xD0000000 设置 SPY_FLAG spy_quit_func
0x96 基址：0xA8000000 设置 SPY_FLAG
0xa0 基址：0xB0000000 设置 SPY_FLAG

Request 1 list, length 17:

0xfe,0xc8,0xfd,0xa0,0x96,0x6e,0x64,0xdd,0xde,0xdf,0xe0,0xe1,0xe2,0xe3,0xe4,0xe5,0xe6

It checks whether a value in [1, 255] hits an entry in the list. It tries 5–30 times. If it hits, it decrements the attempt count by 1 and tries again. If it doesn’t hit, it requests via ioctl the offset corresponding to the random value (parameter [17, 768]), and the “magic number” is the matched value. My guess is it might be used to initialize the driver, but I can’t think of any other purpose. Why make it so complicated?

Somewhere in the main game executable, I found leftover code. The XOR constant is 0xD4AA268A. In Percussion Master 2008 I didn’t find any trigger logic; it should be a hidden stub for another game. This makes it more certain that this functionality is for anti-piracy (even though the design is awful).

ASIC 27 Protocol

A27 Initialization

Communication between the main game executable and the I/O board goes through the PLX PCI 9030 chip and exchanges data via shared memory.

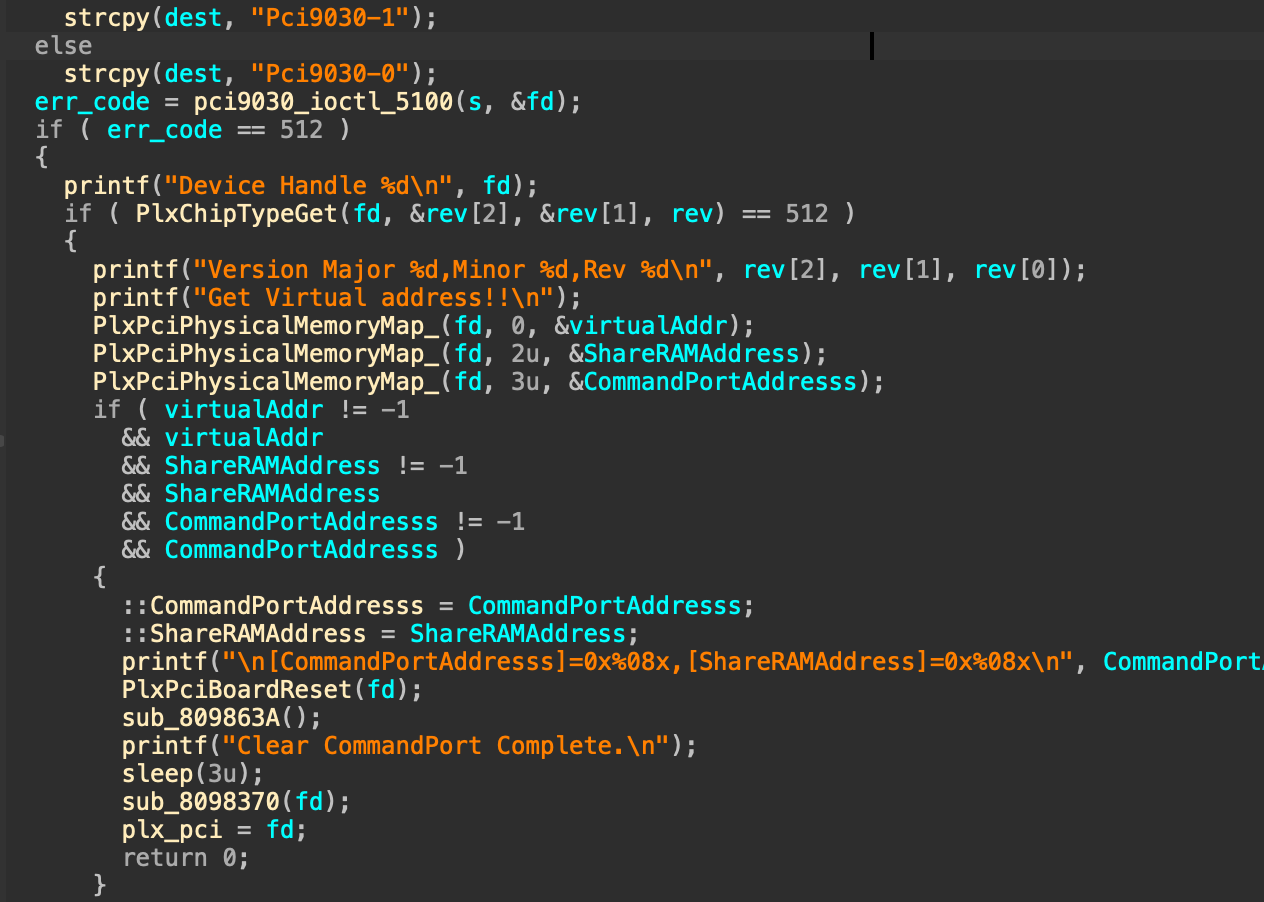

After game startup and before ASIC 27 initialization, it loads the PCI 9030 driver and allocates a buffer specifically used to store the ASIC buffer, containing various state data. The developer calls it CommandPort.

Next is initializing ASIC 27. It first updates a checksum: it accumulates values such as key sensitivity, key input, light status, system mode, and buffer size located in the buffer, then stores the checksum in two locations in the buffer. Every subsequent ASIC 27 request recalculates the checksum.

It first writes 0x2024 bytes to ASIC 27 with command 0xfe, i.e., directly copying the buffer data into shared memory. After ASIC processing, the shared memory is refreshed, and it will change sm from 0x1c to other values to indicate processing completion.

ASIC will synchronize the game configuration to the OS for updating game settings. It updates the following files:

./pm2_data/storename.dat
./pm2_data/soundset.bin
./pm2_data/gameset.bin

Then it sets sm to 0, updates the checksum once more, and sends it to A27.

System Mode

From analysis, the modes are:

• 0x0: default mode
• 0x1: ASIC test data read
• 0x2: key test
• 0x3: buzzer test
• 0x4: light board test
• 0x5: coin test
• 0x6: trackball test
• 0x7: SelMode, IGS Logo
• 0x8: Teammark
• 0xc: Coin Page
• 0xf: option
• 0x14: Photo
• 0x10: Song Play
• 0x1a: CCD
• 0x1d: adjust volume

A27 System Mode Write State Machine

Pre-processing before sending data to ASIC. When sm is one of the following values, there is no processing logic and it returns 1:

0x0,0x2,0x3,0x6,0x9,0xa,0xb,0x11,0x12,0x15,0x16,0x17,0x18,0x19,0x1b,0x1c,0x1e

• 0x1: test data write
• 0x4: light test
• 0x5: coin test
• 0x7: SelMode
• 0x8: Teammark
• 0xc: code removed
• 0xe: code removed
• 0xf: code removed
• 0x10: Song
• 0x13: code removed
• 0x14: code removed
• 0x1a: camera test
• 0x1d: adjust volume

Other values trigger an assert.

A27 System Mode Analysis State Machine

Data returned by ASIC is handled by the main game executable. When sm is one of the following values, there is no processing logic and it returns 1:

0x0,0x6,0x9,0xa,0xa,0xb,0x11,0x12,0x15,0x16,0x17,0x18,0x19,0x1b,0x1c,0x1d,0x1e

System Mode handling:

• 0x1: ASIC test data read
• 0x2: enter key test
• 0x3: enter buzzer test
• 0x4: enter light board test
• 0x5: coin test
• 0x7: load IGS LOGO
• 0x8: load Teammark data
• 0xC: code removed
• 0xE: code removed
• 0xF: code removed
• 0x10: Song
• 0x13: code removed
• 0x14: code removed
• 0x1a: CCD info

Other values trigger an assert.

Key State Machine

                press
        ┌──────────────────────┐
        │                      │
   ┌────▼─────┐  release    ┌──┴─────┐
   │   Idle   │────────────►│Released│
   │   (0)    │             │   (3)  │
   └────▲─────┘             └──▲─────┘
        │                      │
        │ press                │ release
        │                      │
   ┌────┴─────┐ long press  ┌──┴─────┐
   │ Pressed  │────────────►│Holding │
   │   (1)    │             │  (2)   │ keep holding, counter++
   └──────────┘             └────────┘

Buffer Struct Analysis

The maximum length of the buffer is 8192.

The response header format:

struct g_rBufferRead {
  int    _dwBufferSize; // 数据大小
  int    system_mode;   // 系统模式
  char   coin_inserted; // 投币了
  char   a27_error_flag;
  short  error_number;
  int    key_io_list[6];
  int8   key_channels;
  char   pc0;
  char   pc1;
  int16  area_code;
  int16  padding_1;
  char   in_rom_version_name[8];
  char   ext_rom_version_name[8];
  int16  inet_password_data;
  int16  a27_has_message; // 决定 a27_message 是否携带数据
  char   is_light_io_reset;
  char   pci_card_version;
  char   bCheckSum1;
  char   bCheckSum2;
  char   a27_message[40];
  char   asic27_buffer[unknown];
}

The request header format:

struct g_rBufferWrite {
  int    _dwBufferSize; // 数据大小
  int    system_mode;   // 系统模式
  int    key_input;
  int16  trackball_data[4];
  char   bCheckSum1;
  char   bCheckSum2;
  char   lightdisable;
  char   key_sensitivity;
  int    lightstate;
  int    lightpattern;
  char   data[unknown];
}

A27 Response Checksum

ASIC 27 responses also carry a checksum, which the main executable verifies. It is computed by summing the following fields:

a27_has_message + inet_password_data + rd_is_light_io_reset + error_number + asic27_error + coin_inserted + system_mode[0] + buffer_size

Buffer Obfuscation Analysis

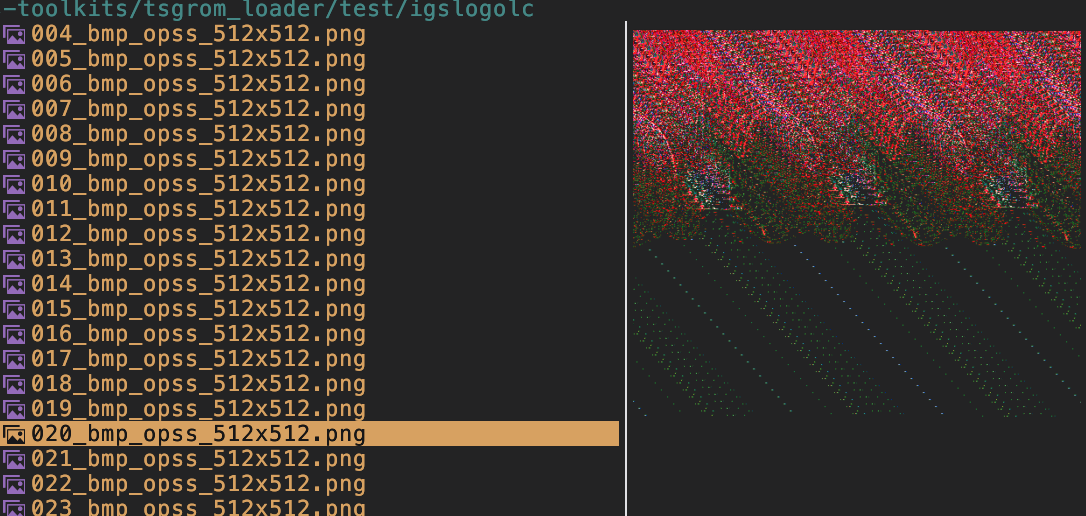

Compared to the older version, Percussion Master 2008 added a simple obfuscation layer. The goal is anti-piracy: to avoid running a copied ROM directly. When copying from the buffer into the ASIC 27 buffer, the data is obfuscated.

The obfuscation is triggered only when System Mode matches the following values. Coincidentally, the data for these modes is not pre-processed by the Write state machine.

• 0x7: SelMode, IGS Logo
• 0x8: Teammark
• 0xc: Coin Page
• 0xd:
• 0xe:
• 0xf: Option
• 0x13:
• 0x14: Photo
• 0x15:

During obfuscation, the program copies asic27_buffer data into dest. Using dest as the source, it processes in blocks. Each block is 0x500 = 1280 bytes. It takes a block, computes a perturbation value based on the first 4 bytes (block header) plus mask_table, and then performs a cyclic reordering of the block data according to that value, finally writing back to the buffer.

v3 = mask_table[v1[0]];
v3 ^= mask_table[v1[1]];
v3 ^= mask_table[v1[2]];
v3 ^= mask_table[v1[3]];

Use v3 to compute an offset. If remaining data is less than 0x500, use v3 % (remaining_length-4) + 4. Otherwise use a fixed v3 % 0x4FC + 4, ensuring the offset range is [4, 0x4FF].

It first copies [v3, end] into the destination, then copies [4, v3). The result is a “rotated” block. The first 4 bytes (header) are not copied in order; instead, they are skipped and then reassembled.

I asked an AI to write a Python implementation.

import random

# size: 0x400
mask_table = [0x00, 0x00, 0x00, 0x00, 0x39, 0x4E, 0xC1, 0xE6, 0x02, 0x19, 0xB1, 0xB9, 0x63, 0xCB, 0xC7, 0x9E, 0xE4, 0xCD, 0x76, 0xE7, 0x23, 0x8D, 0xB3, 0x6B, 0x3F, 0xDA, 0x89, 0xF5, 0x4D, 0xCB, 0x56, 0xB5, 0xD3, 0xA9, 0xBC, 0x2E, 0xA0, 0xE0, 0x80, 0xD6, 0x92, 0x62, 0xDE, 0xC9, 0xFD, 0x24, 0x04, 0x06, 0x4B, 0x70, 0xB2, 0x21, 0x26, 0xD1, 0xB1, 0xAF, 0xA0, 0x29, 0x29, 0x9D, 0x0C, 0x5E, 0x59, 0x09, 0xA2, 0xC9, 0xF3, 0x67, 0x4F, 0xE6, 0xCD, 0x6E, 0xF3, 0x97, 0xF1, 0xF9, 0xD1, 0xE1, 0xCD, 0x26, 0x62, 0x0D, 0xF4, 0x7A, 0x72, 0x98, 0x3C, 0x9B, 0xE2, 0x43, 0xCE, 0x54, 0xF4, 0x44, 0xE9, 0xF5, 0x22, 0xC4, 0x3F, 0xD0, 0x38, 0x5F, 0x96, 0xAD, 0x05, 0xB7, 0x18, 0x47, 0xFE, 0x00, 0x14, 0xED, 0x5B, 0x75, 0x3B, 0xF2, 0x08, 0xA2, 0x44, 0x1E, 0xE5, 0x59, 0x68, 0x4A, 0x36, 0x9E, 0xF6, 0x87, 0x74, 0xAA, 0x70, 0x68, 0x6A, 0x1B, 0xED, 0x84, 0xE9, 0xB2, 0x35, 0xC5, 0x54, 0x83, 0xE8, 0x5B, 0x05, 0xD9, 0x77, 0x9A, 0xD6, 0x20, 0xD9, 0x48, 0xA9, 0x59, 0x18, 0x40, 0xB1, 0x5A, 0x81, 0xC1, 0x96, 0x7B, 0xC7, 0x1F, 0xD5, 0x5A, 0xB1, 0x01, 0x9E, 0xA8, 0x67, 0x52, 0xF4, 0x7A, 0x39, 0x51, 0x80, 0x18, 0xC9, 0x61, 0xEE, 0x01, 0xEC, 0x19, 0x2F, 0x25, 0xBC, 0x74, 0x85, 0x6A, 0x99, 0x92, 0x6A, 0x28, 0x13, 0xF6, 0x9A, 0xED, 0x02, 0x26, 0xF4, 0x69, 0x9F, 0x1E, 0xED, 0xC3, 0x18, 0x0E, 0xBD, 0x32, 0x1F, 0x47, 0x4F, 0x55, 0x8B, 0x91, 0x75, 0xEC, 0x66, 0xC8, 0x83, 0xED, 0x2E, 0x1B, 0x0F, 0xB0, 0x65, 0xEC, 0x87, 0xD3, 0xE0, 0xE2, 0x2B, 0x16, 0xCB, 0x0A, 0x0F, 0x70, 0x64, 0x52, 0xBA, 0x38, 0x6B, 0x5C, 0xEA, 0xFD, 0xA9, 0xB1, 0x8D, 0x8F, 0x26, 0x4B, 0xD9, 0xD3, 0x40, 0x4A, 0x66, 0x33, 0xBB, 0x01, 0xCE, 0x3C, 0x3C, 0x56, 0x14, 0xAE, 0xFD, 0x05, 0x7A, 0x8F, 0x4D, 0x4D, 0x79, 0x29, 0xCC, 0x81, 0xCD, 0x07, 0x43, 0x68, 0x57, 0x0C, 0xDA, 0xDE, 0x79, 0x1D, 0xE0, 0x01, 0x8D, 0x91, 0x17, 0x55, 0x4F, 0xF8, 0x25, 0x60, 0xCE, 0x11, 0x34, 0x3F, 0x3F, 0x03, 0xA3, 0xEF, 0xFA, 0xF5, 0x13, 0xE5, 0xEA, 0x75, 0x6A, 0xD7, 0xE1, 0x65, 0x94, 0x90, 0x42, 0xC9, 0x1D, 0x7F, 0x66, 0xDB, 0x68, 0xB8, 0x18, 0x18, 0x8B, 0x22, 0x49, 0x70, 0x71, 0x88, 0x2D, 0xD9, 0x96, 0x29, 0x4B, 0xAC, 0x7F, 0x58, 0x50, 0x57, 0x0F, 0xDC, 0x4D, 0xB9, 0x53, 0x81, 0x65, 0xD9, 0xB7, 0x85, 0x10, 0xF0, 0xCE, 0x4B, 0x2B, 0xAA, 0x7F, 0x7C, 0x75, 0xBA, 0xB2, 0x01, 0x64, 0x13, 0x07, 0x0A, 0x5E, 0x3F, 0xEF, 0xFA, 0x00, 0x8B, 0x31, 0x89, 0x6A, 0xE9, 0x17, 0x81, 0xC1, 0x4D, 0xEE, 0x31, 0x8C, 0xF0, 0x3A, 0xFD, 0x77, 0x90, 0xDF, 0x7C, 0x83, 0xDF, 0xF9, 0x99, 0xE4, 0xC0, 0xE5, 0x82, 0x22, 0xBD, 0x46, 0xBC, 0xF8, 0x23, 0xE1, 0xDD, 0x48, 0xF3, 0xE1, 0xB0, 0x66, 0x13, 0x93, 0x85, 0xB8, 0xEC, 0x9B, 0xCE, 0x0C, 0xEA, 0xDD, 0x14, 0x42, 0xDF, 0x45, 0x50, 0xAE, 0xC0, 0x60, 0xB2, 0xB7, 0x16, 0xB1, 0xAD, 0x2A, 0x2E, 0x1D, 0xC8, 0xE8, 0xE9, 0xAF, 0x0F, 0x44, 0x5D, 0xC5, 0x80, 0xA6, 0xB2, 0x01, 0xCF, 0xDB, 0x96, 0x49, 0x52, 0xC2, 0xBA, 0x97, 0x36, 0xB0, 0x33, 0x59, 0x88, 0x1D, 0x5A, 0x22, 0xAD, 0xA5, 0x9C, 0xD7, 0x5B, 0x59, 0xCA, 0x83, 0x7D, 0x7B, 0xFA, 0x84, 0x22, 0x65, 0x64, 0x7C, 0xDF, 0xF3, 0xA6, 0x41, 0x49, 0x14, 0x81, 0xED, 0x3B, 0x0C, 0x0A, 0xDF, 0xF6, 0x35, 0x79, 0x98, 0xDC, 0x6A, 0x5D, 0x0E, 0x94, 0x8B, 0x87, 0x5D, 0x0A, 0xEC, 0xFA, 0xC1, 0x6C, 0xE5, 0x01, 0xFD, 0x1E, 0x54, 0x29, 0xB7, 0xC6, 0x26, 0x33, 0x49, 0x60, 0x92, 0x44, 0xD2, 0x0C, 0x1E, 0x84, 0x03, 0x2B, 0x67, 0x82, 0xC3, 0x75, 0x7E, 0x2E, 0x2B, 0xC6, 0x96, 0x6E, 0x8A, 0x5D, 0x27, 0x7A, 0x62, 0x8C, 0xFE, 0x00, 0xCA, 0xFB, 0xFA, 0xD0, 0x9A, 0xB4, 0x60, 0xD1, 0x52, 0xC8, 0xB8, 0x7A, 0x83, 0xA9, 0xAE, 0x2A, 0x14, 0xFE, 0x33, 0xB1, 0x0F, 0xA2, 0x89, 0x25, 0xC1, 0xD5, 0x3A, 0xDE, 0xED, 0x09, 0xE1, 0x49, 0x4A, 0xD7, 0x9F, 0x49, 0xF1, 0x28, 0x88, 0xD1, 0x50, 0x2C, 0x24, 0x4C, 0x09, 0x36, 0x3F, 0x15, 0xD3, 0x1D, 0xA8, 0x1F, 0xE8, 0xAD, 0xC5, 0x5F, 0x95, 0x04, 0xFE, 0x2C, 0x6E, 0xB6, 0x0E, 0xF6, 0x47, 0x4A, 0xF6, 0xAC, 0x5C, 0xBA, 0xD9, 0x35, 0xEA, 0x27, 0x41, 0xF8, 0x84, 0xF2, 0xF8, 0x74, 0x2F, 0xE4, 0xEF, 0x69, 0xC6, 0xC7, 0x4B, 0xEC, 0xD7, 0xEB, 0x83, 0x47, 0xE3, 0x82, 0x74, 0x06, 0xD2, 0x64, 0x1D, 0xEB, 0xCD, 0x7C, 0x74, 0xFC, 0xF2, 0xC9, 0x3F, 0x90, 0x14, 0xDE, 0x1B, 0x25, 0xF8, 0x52, 0xE8, 0x9D, 0xB9, 0x11, 0x0A, 0xEC, 0xA5, 0x59, 0xEA, 0x5C, 0x7E, 0x7D, 0x33, 0x79, 0xEA, 0x26, 0xF6, 0x06, 0x23, 0x4D, 0x67, 0x26, 0x88, 0x12, 0xFE, 0x13, 0x9A, 0xE9, 0x66, 0x5A, 0x4F, 0x67, 0xB1, 0xBD, 0xA2, 0x89, 0x02, 0x40, 0x01, 0x7E, 0xF2, 0x4D, 0x0E, 0x98, 0x2C, 0x40, 0x8F, 0x8F, 0x90, 0x1B, 0x9F, 0x4D, 0x84, 0xB3, 0x9A, 0x03, 0x6E, 0x71, 0x24, 0x03, 0xFC, 0xD3, 0x23, 0x14, 0x3C, 0xA8, 0x90, 0x11, 0x54, 0x07, 0xDA, 0x3A, 0xDB, 0x19, 0x94, 0xC2, 0x6E, 0x7A, 0x92, 0x9F, 0x0C, 0x0C, 0x0F, 0x7D, 0xFA, 0xA4, 0x3A, 0x9B, 0xA0, 0xBB, 0xC4, 0x5C, 0xDA, 0xCE, 0x74, 0x78, 0x88, 0x8E, 0x83, 0xD8, 0xEE, 0x21, 0x31, 0x9E, 0x75, 0xC0, 0x2E, 0x2B, 0xE9, 0x17, 0x31, 0x46, 0x39, 0xD8, 0x85, 0xBC, 0xA9, 0xF8, 0x57, 0xCA, 0xA3, 0xE0, 0x59, 0xC5, 0xF2, 0x0D, 0x52, 0x73, 0x95, 0x40, 0x7C, 0xAF, 0xB2, 0xAF, 0x14, 0x99, 0xD1, 0x62, 0xCE, 0xB3, 0xAD, 0x17, 0x5E, 0x95, 0x26, 0x8F, 0xF0, 0x2A, 0x92, 0xBF, 0xF1, 0xA1, 0x77, 0xE0, 0xF4, 0x6D, 0x62, 0xCF, 0xCE, 0x15, 0x74, 0xFD, 0x7A, 0xA5, 0xD0, 0x90, 0x75, 0x4B, 0xFE, 0xE0, 0x63, 0x5A, 0xBA, 0x8B, 0x09, 0x8B, 0xE6, 0x12, 0x71, 0xB7, 0xD4, 0xD9, 0x29, 0x1E, 0xFD, 0xEB, 0x93, 0x14, 0x0D, 0xD4, 0xA7, 0x5F, 0x04, 0x85, 0x7D, 0xDA, 0x26, 0xE4, 0x63, 0x94, 0xEC, 0x49, 0x0D, 0x21, 0xF1, 0x42, 0x20, 0x18, 0x66, 0x9F, 0xF6, 0x64, 0x5F, 0x57, 0xCE, 0x33, 0x43, 0xB2, 0x38, 0xFA, 0xF0, 0x5C, 0x1D, 0x4F, 0x65, 0xE8, 0x85, 0x1E, 0xC6, 0x9B, 0xDF, 0x85, 0x9B, 0x9D, 0xAD, 0x17, 0x81, 0x7C, 0xD5, 0x5C, 0xA8, 0xF8, 0x81, 0x40, 0x13, 0x38, 0xF0, 0x00, 0x5B, 0x73, 0xD3, 0xF0, 0x2D, 0x38, 0x00, 0xD7, 0x87, 0x47, 0x82, 0x81, 0xAF, 0xA5, 0xC8, 0x2D, 0x0C, 0xCC, 0x52, 0x2C, 0x5A, 0x09, 0x07, 0x38, 0xAB, 0x4D, 0x01, 0x4B, 0x11, 0x8C, 0xAF, 0x63, 0x25, 0x00, 0x82, 0x25, 0xA2, 0x77, 0x71, 0x07, 0x7B, 0x71, 0x95, 0x14, 0xD1, 0x23, 0x3D, 0x6C, 0x4E, 0xD7, 0x0C, 0x61, 0x7D, 0xFA, 0xC6, 0xCB, 0x6F, 0x6C, 0x97, 0x65, 0x57, 0x23, 0xEB, 0x7E, 0xCF, 0x89, 0x37, 0x69, 0x52, 0x19, 0x7F, 0xED, 0x1F, 0x96, 0xAD, 0xC6, 0x3C, 0x04, 0x31, 0x42, 0x31, 0xCD, 0xBB, 0xB5, 0xD9, 0x5D, 0xF2, 0xE5, 0xF4, 0x77, 0x21, 0xAF, 0xE8, 0x3E, 0xA5, 0x20, 0x2B, 0xFC, 0xE1, 0xDC, 0x5A, 0x2F, 0xEA, 0x5B, 0x85, 0x96, 0xBA, 0x97, 0xE1, 0x48, 0xA1, 0xC0]

BLOCK_SIZE = 0x500

def obfuscate_block(block: bytes) -> bytes:
    """Obfuscate a single 0x500 byte block"""
    if len(block) < 4:
        return block

    block_header = block[:4]

    obfs_value = mask_table[block_header[0]]
    for i in range(1, 4):
        obfs_value ^= mask_table[block_header[i]]

    # Calculate offset (range 4 ~ 0x4FF)
    obfs_value = obfs_value % 0x4FC + 4

    # Data reordering:
    #   [obfs_value:end] + [4:obfs_value]
    part1 = block[obfs_value:]       # From obfs_value to end
    part2 = block[4:obfs_value]      # From 4 to obfs_value
    new_block = part1 + part2
    return new_block


def deobfuscate_block(block: bytes, header: bytes) -> bytes:
    """Deobfuscate a single 0x500 byte block, requires original header"""
    if len(block) < 4:
        return block

    # Re-calculate perturbation value (must use original header)
    obfs_value = mask_table[header[0]]
    for i in range(1, 4):
        obfs_value ^= mask_table[header[i]]
    obfs_value = obfs_value % 0x4FC + 4

    # The block arrangement rule is:
    #   new_block = block[obfs_value:] + block[4:obfs_value]
    # We need to reverse this to reconstruct the original
    part1_len = len(block) - (obfs_value - 4)  # Corresponds to obfs_value ~ end
    part1 = block[:part1_len]
    part2 = block[part1_len:]

    # Restore to [0:4] + [4:obfs_value] + [obfs_value:end]
    original = header + part2 + part1
    return original


def obfuscate(data: bytes) -> bytes:
    out = bytearray()
    for i in range(0, len(data), BLOCK_SIZE):
        block = data[i:i+BLOCK_SIZE]
        out.extend(obfuscate_block(block))
    return bytes(out)


def deobfuscate(data: bytes, headers: list[bytes]) -> bytes:
    out = bytearray()
    for idx, i in enumerate(range(0, len(data), BLOCK_SIZE)):
        block = data[i:i+BLOCK_SIZE]
        header = headers[idx]
        out.extend(deobfuscate_block(block, header))
    return bytes(out)


if __name__ == "__main__":
    data = bytearray()
    headers = []
    for blk in range(3):
        header = bytes([blk, blk+1, blk+2, blk+3])
        headers.append(header)
        body = bytes([blk]* (BLOCK_SIZE - 4))
        data.extend(header + body)

    print("First 32 bytes of original data:", data[:32])

    obfs = obfuscate(data)
    print("First 32 bytes of obfuscated data:", obfs[:32])

    deobfs = deobfuscate(obfs, headers)
    print("First 32 bytes of deobfuscated data:", deobfs[:32])
    print("Deobfuscation correct:", deobfs == data)

TSGROM Parsing

TSGROM is the game’s multimedia resource file, containing scripts and textures—similar to Unity’s assets.

The TSGROM version supported by PM2008 is at least 00.0000.0004, consistent with PM1. The code is crude and brute-force—full of while(1).

Some ROMs don’t carry version information, and I’m not sure what they’re for—for example, biglogo.rom. It has a lot of LZSS image data, but it doesn’t match the color format in the code, so it’s likely historical baggage.

TSGROM can be loaded from a file or from RAM. After the first load, it’s stored in RAM, so subsequent operations don’t need to touch the file again.

PM2008 supports TGA, BMP, and PCX graphics. The TSGROM format is long and boring; it’s not worth expanding into a full analysis. I wrote a script to parse TSGROM: igs-toolkits tsgrom_loader

(base) ➜  tsgrom_loader git:(master) ✗ python ./tsgrom_loader.py -f ./test/resultl.rom -o ./test/resultl --format png
TSGROM Header:
  Header: TSGROM01
  Version: 00.0000.0004
  Length: 0
  Data Zones: 2276
  Data Type Counts:
       SOUND: 1
    ACTBLOCK: 531
    ACTINDEX: 1
    ACT_DATA: 60
    ACT_POOL: 531
    ACT_STEP: 975
    BASEDATA: 1
    BMP_OPSS: 18
    MTV_INAC: 1
    PALETTE1: 1
    TGA_OPSS: 156
Found 174 image data zones

Taking IGS Logo as an example, after extraction you get each frame image of the animation.

Action Parser

IGS’s TSGROM defines various graphical behaviors of the game and calls them actions. The main executable implements functionality by parsing actions. If you want to run the main game executable on a PC, various game events are related to the A27 protocol, so you need to reverse the corresponding actions. But I want to try the most “perfect” cracking approach: dump the ASIC ROM and run it in an emulator. I don’t want to analyze this pile of spaghetti code.

• ACT BLOCK: number of data blocks
• ACT INDEX: ACT index
• ACT DATA: action data
• ACT POOL: action data
• ACT STEP: animation frames

The main executable is stripped, so analysis is time-consuming. Here are brief notes:

When loading a TSGROM, the program loads act_data into memory; based on the number of act_pool, it also loads pool data into memory. Each TSGROM gets an independent Group ID. The action-related functions distinguish by Group ID. There can be up to 0x80 action groups, each group length is 0x2AA4. Each group also has a corresponding index; action index size is 0xaa9, and the list length is also 0x80.

Before loading tsgrom, it first creates action objects: a total of 1024 action_data instances, each action_data is 0x8D bytes.

Then it calls ActionUse to initialize act_data and allocate graphics display resources. It uses ActionFace, ActionShow, etc. to configure graphics display control, and finally calls RealTimeEvent to refresh the screen in a unified way.

TSG ROM Hidden Stub

IGS intentionally corrupts certain blocks in the resource files. They must be dynamically repaired via the ASIC chip. This is also IGS’s anti-piracy mechanism, preventing crackers from modifying animation files to reskin games.

IGS Logo:

Teammark:

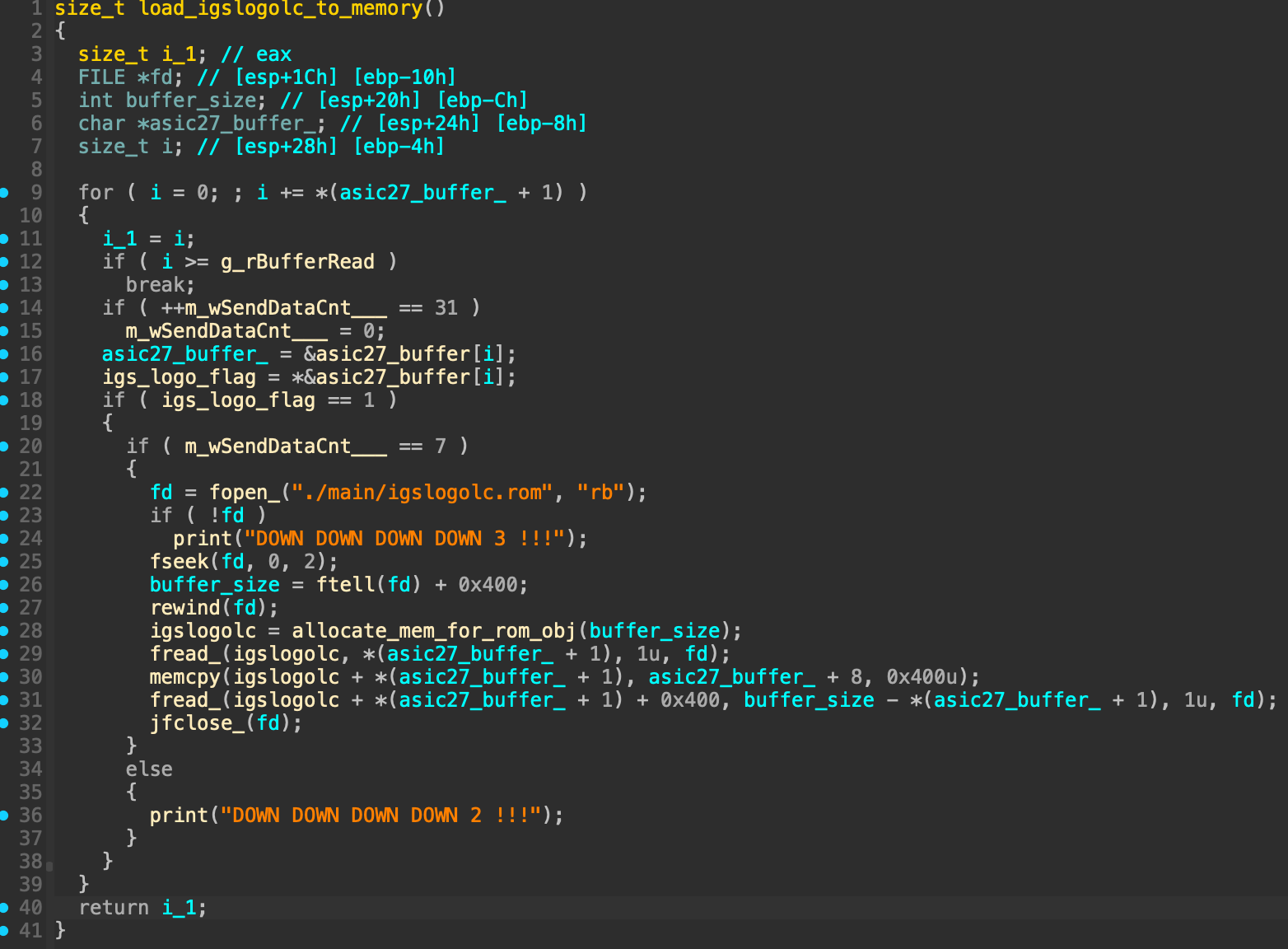

Taking IGS Logo as an example: when a marker field in the buffer matches 1, it indicates the packet type is resource repair. When iterating to a specific block (7 in this case), it appends 0x400 bytes from ASIC 27 to the corresponding corrupted region, completing the resource repair.

Closing Notes

IGS tightly couples the game’s main executable with hardware. Porting the game to another platform requires a significant amount of effort.

The game framework and song charts are implemented as state machines and are relatively complex; they’re not within my cracking target.

Documenting reverse engineering in blog posts feels even more exhausting than the work itself. When reversing for yourself, you only need to record some data; but to make it into an article, you have to write it in a way others can understand.

Next topic: IGS Arcade Reverse Engineering Series (5) - ASIC27 Protocol Hooking and Main Executable Patching

Commemorating the Blood Moon. Praise the Lady.
