FRP Usage Notes

flowchart

Preface

frp is a project by the Chinese developer fatedier. Let’s start with the official introduction:

frp is a high-performance reverse proxy application that helps you easily expose services from a private network to the public Internet. It supports protocols such as tcp, udp, http, and https, and web services can be routed and forwarded by domain name.

I had been using ngrok on a router for a long time, so I knew nothing about frp. When doing penetration testing, NAT traversal is often needed, so I kept looking for a solid tool—sharpening the axe before chopping wood.

After trying it out, I found frp’s usage is similar to ngrok’s, but frp is even better.

The setup is straightforward, but I still ran into a few issues, so I’m recording the process here.

Install

Download the source and build it. The build process isn’t very forgiving—you need to set $GOPATH. On Ubuntu, without specifying $GOPATH, it downloaded directly into /src/xxxx, and the build failed.

export GOPATH=$HOME/go
$GOPATH/src/github.com/fatedier/frp

Download the source:

go get github.com/fatedier/frp
# or run
git clone https://github.com/fatedier/frp.git $GOPATH/src/github.com/fatedier/frp

Build:

cd $GOPATH/src/github.com/fatedier/frp
make

Install:

# server
cp ./bin/frps /usr/bin/frps
cp ./conf/frps.ini /etc/frps.ini
# client
cp ./bin/frps /usr/bin/frpc
sudo cp ./conf/frpc.ini /etc/frpc.ini

Configuration

By default, it uses a config file.

Server

Check the help first:

root@gorgiaxx:~# frps -h
frps is the server of frp

Usage:
    frps [-c config_file] [-L log_file] [--log-level=<log_level>] [--addr=<bind_addr>]
    frps [-c config_file] --reload
    frps -h | --help
    frps -v | --version

Options:
    -c config_file            set config file
    -L log_file               set output log file, including console
    --log-level=<log_level>   set log level: debug, info, warn, error
    --addr=<bind_addr>        listen addr for client, example: 0.0.0.0:7000
    --reload                  reload ini file and configures in common section won't be changed
    -h --help                 show this screen
    -v --version              show version

Since it supports reading a config file, we can just look at the config directly. The sample config provided by the author is already very detailed, so it’s convenient to set up.

vim /etc/frps.ini

Here’s my config file:

[common]
# 支持IPv6，但是大陆网络情况下几乎不支持。这里填我们的IPv4地址，隧道端口7000
bind_addr = 45.32.42.185
bind_port = 7000

# 这个就是http代理的端口，不要和nginx冲突，否则直接闪退。
vhost_http_port = 8000
vhost_https_port = 8443

# 控制面板的访问端口，在这里我们可以看到隧道的使用情况
dashboard_port = 7500

# 控制面板访问控制，请修改默认密码
dashboard_user = your_name
dashboard_pwd = your_password

# 日志记录路径，控制面板也能访问
log_file = /var/log/frps.log

# 日志级别，可选debug, info, warn, error。这里只需要warn，免得占空间。
log_level = warn

# 日志记录时间，不知道是不是支持自动清理，记录下warn日志就够了，也不需要清理。我觉得没必要记录warn以下的信息，就不管了
log_max_days = 3

# 特权模式，开启之后，支持客户端预配置，也就是不用在服务端单独配置服务，为了示范，我还是下面加一点服务端预配置参数
privilege_mode = true
privilege_token = your_privilege_token

# 心跳包配置，默认30秒，超时应该就断开连接了
heartbeat_timeout = 30

# 设定端口范围，特权模式下端口是客户端决定的，所以要在服务端做好限制，以免影响正常服务
privilege_allow_ports = 2000-3000,3001,3003,4000-50000

# 最大连接数
max_pool_count = 100

# 认证超时
authentication_timeout = 60

# 子域名的根域名，就这样翻译吧
subdomain_host = gorgiaxx.me

# 这个用作metasploit的reverse_tcp穿透，配好token就好
[rev]
type = tcp
auth_token = gorgiaxx
bind_addr = 0.0.0.0
# ！！！注意，这里一定要看服务商是否把端口过滤了。vultr把4444端口过滤了害我折腾半天。
listen_port = 4444

# 这个来代理web服务，用来传输payload
[web]
# 如果要用http代理，必须至少在前面设定vhost_http_port这个参数。
type = http
auth_token = gorgiaxx
# 子域名，最后的访问域名就是frp.gorgiaxx.me
subdomain = frp

Client

～$ frpc -h
frpc is the client of frp

Usage:
    frpc [-c config_file] [-L log_file] [--log-level=<log_level>] [--server-addr=<server_addr>]
    frpc -h | --help
    frpc -v | --version

Options:
    -c config_file              set config file
    -L log_file                 set output log file, including console
    --log-level=<log_level>     set log level: debug, info, warn, error
    --server-addr=<server_addr> addr which frps is listening for, example: 0.0.0.0:7000
    -h --help                   show this screen
    --version                   show version

Config file:

[common]
# 服务器端口和地址
server_addr = 45.32.42.185
server_port = 7000

# 通过http代理访问，一般情况下用不到
# http_proxy = http://user:[email protected]:8080

# 日志路径，客户端访问这个要root权限，后面加sudo运行吧。
log_file = /var/log/frpc.log
log_level = warn
log_max_days = 3

# 服务指定给用户的token
auth_token = gorgiaxx

# 特权的token
privilege_token = your_token

[rev]
# tcp | http, default is tcp
type = tcp
local_ip = 127.0.0.1
local_port = 4444
# 加密通信，暂时不需要
use_encryption = false
# 不是http的情况下，gzip压缩也不要
use_gzip = false

[pre_rev]
# 预配置
privilege_mode = true
type = tcp
local_ip = 0.0.0.0
local_port = 5555
# 远程端口
remote_port = 5555

[web]
type = http
local_ip = 127.0.0.1
local_port = 8080
use_gzip = true
pool_count = 20
# 可以设定访问控制
# http_user = admin
# http_pwd = admin
# 子域名，最后就是frp.gorgiaxx.me
subdomain = frp

Running

frp’s permission/access control is done fairly well, so you don’t need to worry too much about ports being exposed to the public Internet. You can safely keep it running in the background.

Server side

nohup frps -c /etc/frps.ini &

Client side

nohup frps -c /etc/frps.ini &

Dashboard

Open it in a browser:

http://gorgiaxx.me:7500/

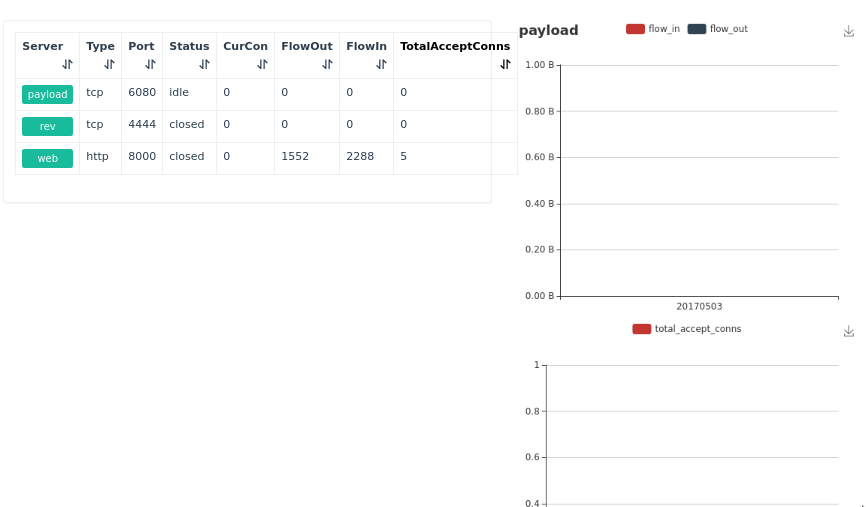

After entering the username and password, you can see the dashboard.

dashboard

Reference

fatedier/frp
