Preface
I originally wrote this post last year but accidentally set the GitHub repository to private and lost the README. After re-uploading, the context felt slightly dated, but the technical content remains relevant.
UBI (Unsorted Block Images) is a volume management system for raw flash devices designed by IBM. It can manage multiple logical volumes on a single physical device and supports wear leveling. It is widely used in embedded devices.

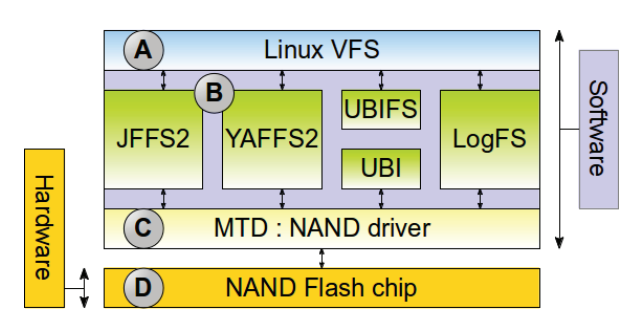

Speaking of raw flash, we should first explain what MTD (Memory Technology Device) is. MTD is a Linux subsystem used to access memory devices (especially flash devices). It serves as an abstraction layer between hardware and filesystems. Taking NAND flash as an example, MTD encapsulates NAND operations and provides abstract interfaces to upper-layer filesystem drivers. An MTD device consists of eraseblocks. The MTD driver provides read, write, and erase operations—but before modifying any block, you must erase it first.
UBI Layout
UBI shares similarities with LVM (Logical Volume Management). While LVM maps logical sectors to physical sectors, UBI maps Logical Erase Blocks (LEBs) to Physical Erase Blocks (PEBs). Fundamentally, UBI operates at the eraseblock level.
At the beginning of each UBI block (excluding bad blocks), there are two 64-byte headers:
- EC header (erase counter header), which contains per-PEB information (VID header offset, data offset).
- VID header (volume identifier header), which contains the volume ID and the PEB number corresponding to a given LEB.
In the Linux source tree under linux/drivers/mtd/ubi/, ubi-media.h defines both the EC header and VID header.
struct ubi_ec_hdr {
__be32 magic; // UBI#
__u8 version; // 01
__u8 padding1[3];
__be64 ec; /* Warning: the current limit is 31-bit anyway! */
__be32 vid_hdr_offset; // VID Header 的偏移
__be32 data_offset; // 数据的偏移
__be32 image_seq; // 物理块序号
__u8 padding2[32];
__be32 hdr_crc; // CRC32
} __packed;
/*
* UBI volume type constants.
*
* @UBI_DYNAMIC_VOLUME: dynamic volume
* @UBI_STATIC_VOLUME: static volume
*/
enum {
UBI_DYNAMIC_VOLUME = 3,
UBI_STATIC_VOLUME = 4,
};
struct ubi_vid_hdr {
__be32 magic; // UBI!
__u8 version; // 1
__u8 vol_type; // 一般是UBI_DYNAMIC_VOLUME
__u8 copy_flag; // 是否从另一个物理块拷贝过来的(wear-leveling)
__u8 compat; // 卷兼容性
__be32 vol_id; // 卷ID
__be32 lnum; // LEB编号
__u8 padding1[4];
__be32 data_size; // 数据大小
__be32 used_ebs; // 用户LEB数量
__be32 data_pad;
__be32 data_crc;
__u8 padding2[4];
__be64 sqnum; // 序号
__u8 padding3[12];
__be32 hdr_crc; // CRC32
} __packed;
The volume with ID UBI_INTERNAL_VOL_START is dedicated to storing volume table records.
#define UBI_INTERNAL_VOL_START (0x7FFFFFFF - 4096)
It contains the volume name:
struct ubi_vtbl_record {
__be32 reserved_pebs;
__be32 alignment;
__be32 data_pad;
__u8 vol_type;
__u8 upd_marker;
__be16 name_len; // 卷名长度
__u8 name[UBI_VOL_NAME_MAX+1]; // 卷名
__u8 flags;
__u8 padding[23];
__be32 crc; // CRC32
} __packed;
On a typical MTD device, the initial sectors are reserved for the bootloader, while the subsequent regions are allocated for UBI. The figure below provides a simplified example; in practice, multiple UBI volumes and other partitions may be interleaved. UBI employs a mechanism called “fastmap” to map LEBs onto non-contiguous PEBs, providing an abstraction layer for UBIFS.
Mounting UBIFS
MTD provides user-space tools for directly operating on UBI: mtd-utils
http://git.infradead.org/mtd-utils.git
- ubinfo - provides information about UBI devices and volumes found in the system;
- ubiattach - attaches MTD devices (which describe raw flash) to UBI and creates corresponding UBI devices;
- ubidetach - detaches MTD devices from UBI devices (the opposite to what ubiattach does);
- ubimkvol - creates UBI volumes on UBI devices;
- ubirmvol - removes UBI volumes from UBI devices;
- ubiblock - manages block interfaces for UBI volumes. See here for more information;
- ubiupdatevol - updates UBI volumes; this tool uses the UBI volume update feature which leaves the volume in “corrupted” state if the update was interrupted; additionally, this tool may be used to wipe out UBI volumes;
- ubicrc32 - calculates CRC-32 checksum of a file with the same initial seed as UBI would use;
- ubinize - generates UBI images;
- ubiformat - formats empty flash, erases flash and preserves erase counters, flashes UBI images to MTD devices;
- mtdinfo - reports information about MTD devices found in the system.
While the above tools operate on UBI, standard PCs lack native MTD devices. To analyze a raw flash firmware dump from an embedded device on a PC, you must simulate an MTD device. The most common tool for this is NANDSim.
- mtdram which simulates NOR flash in RAM;
- nandsim which simulates NAND flash in RAM;
- block2mtd which simulates NOR flash on top of a block device;
First, examine NANDSim’s parameters. Given the large number of options, correct configuration is key.
$ modinfo nandsim
filename: /lib/modules/4.18.10-arch1-1-ARCH/kernel/drivers/mtd/nand/raw/nandsim.ko.xz
description: The NAND flash simulator
author: Artem B. Bityuckiy
license: GPL
srcversion: D2FD00330F9BE30A9B28365
depends: mtd,nand
retpoline: Y
intree: Y
name: nandsim
vermagic: 4.18.10-arch1-1-ARCH SMP preempt mod_unload modversions
sig_id: PKCS#7
signer:
sig_key:
sig_hashalgo: md4
signature:
parm: id_bytes:The ID bytes returned by NAND Flash 'read ID' command (array of byte)
parm: first_id_byte:The first byte returned by NAND Flash 'read ID' command (manufacturer ID) (obsolete) (byte)
parm: second_id_byte:The second byte returned by NAND Flash 'read ID' command (chip ID) (obsolete) (byte)
parm: third_id_byte:The third byte returned by NAND Flash 'read ID' command (obsolete) (byte)
parm: fourth_id_byte:The fourth byte returned by NAND Flash 'read ID' command (obsolete) (byte)
parm: access_delay:Initial page access delay (microseconds) (uint)
parm: programm_delay:Page programm delay (microseconds (uint)
parm: erase_delay:Sector erase delay (milliseconds) (uint)
parm: output_cycle:Word output (from flash) time (nanoseconds) (uint)
parm: input_cycle:Word input (to flash) time (nanoseconds) (uint)
parm: bus_width:Chip's bus width (8- or 16-bit) (uint)
parm: do_delays:Simulate NAND delays using busy-waits if not zero (uint)
parm: log:Perform logging if not zero (uint)
parm: dbg:Output debug information if not zero (uint)
parm: parts:Partition sizes (in erase blocks) separated by commas (array of ulong)
parm: badblocks:Erase blocks that are initially marked bad, separated by commas (charp)
parm: weakblocks:Weak erase blocks [: remaining erase cycles (defaults to 3)] separated by commas e.g. 113:2 means eb 113 can be erased only twice before failing (charp)
parm: weakpages:Weak pages [: maximum writes (defaults to 3)] separated by commas e.g. 1401:2 means page 1401 can be written only twice before failing (charp)
parm: bitflips:Maximum number of random bit flips per page (zero by default) (uint)
parm: gravepages:Pages that lose data [: maximum reads (defaults to 3)] separated by commas e.g. 1401:2 means page 1401 can be read only twice before failing (charp)
parm: overridesize:Specifies the NAND Flash size overriding the ID bytes. The size is specified in erase blocks and as the exponent of a power of two e.g. 5 means a size of 32 erase blocks (uint)
parm: cache_file:File to use to cache nand pages instead of memory (charp)
parm: bbt:0 OOB, 1 BBT with marker in OOB, 2 BBT with marker in data area (uint)
parm: bch:Enable BCH ecc and set how many bits should be correctable in 512-byte blocks (uint)
To understand NANDSim’s implementation, one can examine the kernel driver source code. Briefly, nandsim.c calls nand_scan_ident in nand_base.c. During nand_detect, a Read ID operation is performed: nand_readid_op sends 0x90,0x00 to the NAND device. Subsequently, nand_get_manufacturer matches the manufacturer ID. Finally, nand_scan_tail initializes the NAND chip and sets the appropriate properties.

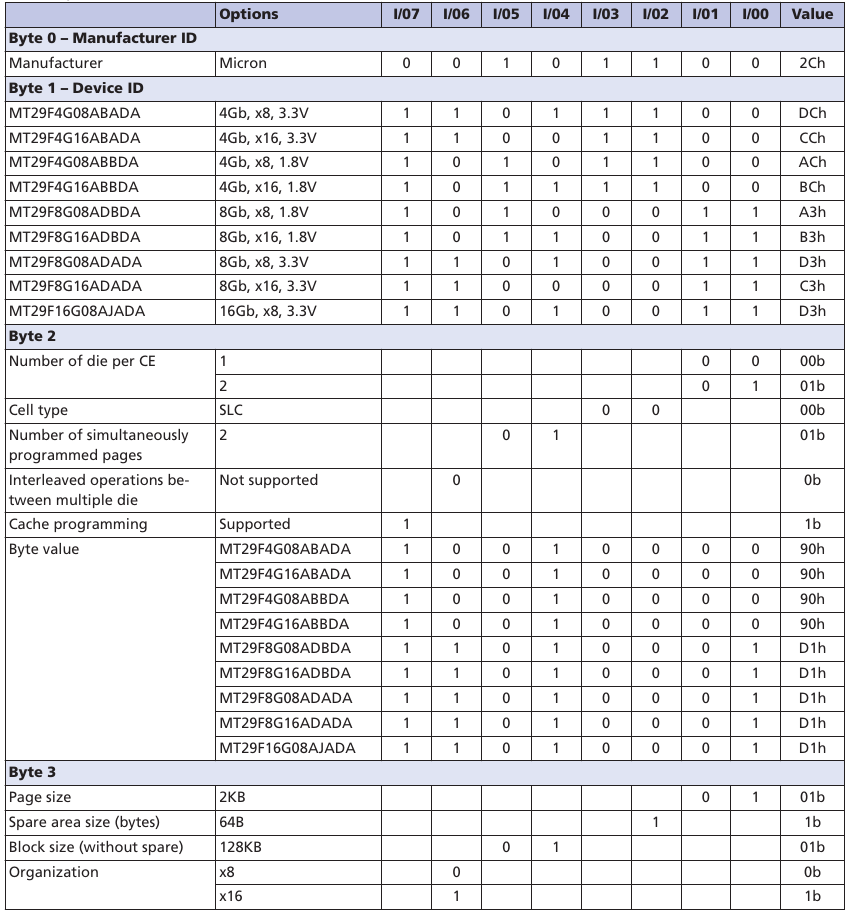

The NAND chip datasheet specifies the ID bytes in detail.
Therefore, we must set the ID correctly. This allows the driver to automatically configure the capacity, page size, and other parameters. For NANDSim, only the first four ID parameters are required.
static u_char id_bytes[8] = {
[0] = CONFIG_NANDSIM_FIRST_ID_BYTE,
[1] = CONFIG_NANDSIM_SECOND_ID_BYTE,
[2] = CONFIG_NANDSIM_THIRD_ID_BYTE,
[3] = CONFIG_NANDSIM_FOURTH_ID_BYTE,
[4 ... 7] = 0xFF,
};
If you need to tune the NAND simulation parameters, use the datasheet table to choose appropriate values.
Typically, an embedded device stores the bootloader and other partitions on the same chip as the system partition. Consequently, partitioning NANDSim is necessary. In this example, the eraseblock size is 128KB (0x20000).
Write a script to locate UBI regions in the dump:
#!/usr/bin/env python3
import sys
import binascii
import struct
if len(sys.argv) < 1:
print("Usage: find_ubi_header.py NAND.bin")
sys.exit(1)
raw_file_path = sys.argv[1]
ubi_header = b'UBI#'
out_of_ubi = True
try:
with open(raw_file_path, 'rb') as raw_file:
rawbin = raw_file.read()
for x in range(0, len(rawbin), 0x20000):
magic = rawbin[x:x+4]
if magic == ubi_header:
if out_of_ubi:
out_of_ubi = False
print("\nUBI offset start:", hex(x))
else:
if not out_of_ubi:
print("UBI offset stop:", hex(x), "\n")
out_of_ubi = True
raw_file.close()
except Exception as e:
print(e)
$ python find_ubi_header.py NAND.bin
UBI offset start: 0x2e60000
UBI offset stop: 0x6900000
UBI offset start: 0x7700000
UBI offset stop: 0x81c0000
UBI offset start: 0x8200000
UBI offset stop: 0x20000000
512MB = 4096 * 128 KB, so this chip has 4K blocks.
| PN | SA | EA | EC |
|---|---|---|---|
| xxx | 0x00000000 | 0x02E60000 | 371 |
| ubi1 | 0x02E60000 | 0x06900000 | 469 |
| foo | 0x06900000 | 0x069C0000 | 6 |
| recovery | 0x069C0000 | 0x07700000 | 106 |
| ubi2 | 0x07700000 | 0x081C0000 | 86 |
| sec | 0x081C0000 | 0x08200000 | 2 |
| ubi3 | 0x08200000 | 0x20000000 | 3056 |
Load the MTD modules and the NANDSim module:
sudo modprobe mtd
sudo modprobe mtdblock
sudo modprobe nandsim first_id_byte=0x2c second_id_byte=0xac third_id_byte=0x90 fourth_id_byte=0x15 parts=371,469,6,106,86,2,3056
Verify the MTD device information to ensure the partitions were created successfully.
$ mtdinfo -a
Count of MTD devices: 8
Present MTD devices: mtd0, mtd1, mtd2, mtd3, mtd4, mtd5, mtd6, mtd7
Sysfs interface supported: yes
mtd0
Name: NAND 512MiB 1,8V 8-bit
Type: nand
Eraseblock size: 131072 bytes, 128.0 KiB
Amount of eraseblocks: 4096 (536870912 bytes, 512.0 MiB)
Minimum input/output unit size: 2048 bytes
Sub-page size: 512 bytes
OOB size: 64 bytes
Character device major/minor: 90:0
Bad blocks are allowed: true
Device is writable: true
mtd1
Name: NAND simulator partition 0
Type: nand
Eraseblock size: 131072 bytes, 128.0 KiB
Amount of eraseblocks: 371 (48627712 bytes, 46.4 MiB)
Minimum input/output unit size: 2048 bytes
Sub-page size: 512 bytes
OOB size: 64 bytes
Character device major/minor: 90:2
Bad blocks are allowed: true
Device is writable: true
mtd2
Name: NAND simulator partition 1
Type: nand
Eraseblock size: 131072 bytes, 128.0 KiB
Amount of eraseblocks: 469 (61472768 bytes, 58.6 MiB)
Minimum input/output unit size: 2048 bytes
Sub-page size: 512 bytes
OOB size: 64 bytes
Character device major/minor: 90:4
Bad blocks are allowed: true
Device is writable: true
mtd3
Name: NAND simulator partition 2
Type: nand
Eraseblock size: 131072 bytes, 128.0 KiB
Amount of eraseblocks: 6 (786432 bytes, 768.0 KiB)
Minimum input/output unit size: 2048 bytes
Sub-page size: 512 bytes
OOB size: 64 bytes
Character device major/minor: 90:6
Bad blocks are allowed: true
Device is writable: true
mtd4
Name: NAND simulator partition 3
Type: nand
Eraseblock size: 131072 bytes, 128.0 KiB
Amount of eraseblocks: 106 (13893632 bytes, 13.2 MiB)
Minimum input/output unit size: 2048 bytes
Sub-page size: 512 bytes
OOB size: 64 bytes
Character device major/minor: 90:8
Bad blocks are allowed: true
Device is writable: true
mtd5
Name: NAND simulator partition 4
Type: nand
Eraseblock size: 131072 bytes, 128.0 KiB
Amount of eraseblocks: 86 (11272192 bytes, 10.8 MiB)
Minimum input/output unit size: 2048 bytes
Sub-page size: 512 bytes
OOB size: 64 bytes
Character device major/minor: 90:10
Bad blocks are allowed: true
Device is writable: true
mtd6
Name: NAND simulator partition 5
Type: nand
Eraseblock size: 131072 bytes, 128.0 KiB
Amount of eraseblocks: 2 (262144 bytes, 256.0 KiB)
Minimum input/output unit size: 2048 bytes
Sub-page size: 512 bytes
OOB size: 64 bytes
Character device major/minor: 90:12
Bad blocks are allowed: true
Device is writable: true
mtd7
Name: NAND simulator partition 6
Type: nand
Eraseblock size: 131072 bytes, 128.0 KiB
Amount of eraseblocks: 3056 (400556032 bytes, 382.0 MiB)
Minimum input/output unit size: 2048 bytes
Sub-page size: 512 bytes
OOB size: 64 bytes
Character device major/minor: 90:14
Bad blocks are allowed: true
Device is writable: true
You can also check dmesg for detailed load info, including chip and partition info.
$ dmesg
[13202.334289] nand: device found, Manufacturer ID: 0x2c, Chip ID: 0xac
[13202.334290] nand: Micron NAND 512MiB 1,8V 8-bit
[13202.334291] nand: 512 MiB, SLC, erase size: 128 KiB, page size: 2048, OOB size: 64
[13202.334299] flash size: 512 MiB
[13202.334299] page size: 2048 bytes
[13202.334300] OOB area size: 64 bytes
[13202.334300] sector size: 128 KiB
[13202.334301] pages number: 262144
[13202.334301] pages per sector: 64
[13202.334302] bus width: 8
[13202.334302] bits in sector size: 17
[13202.334302] bits in page size: 11
[13202.334303] bits in OOB size: 6
[13202.334304] flash size with OOB: 540672 KiB
[13202.334304] page address bytes: 5
[13202.334304] sector address bytes: 3
[13202.334305] options: 0x8
[13202.334779] Scanning device for bad blocks
[13202.358806] Creating 7 MTD partitions on "NAND 512MiB 1,8V 8-bit":
[13202.358810] 0x000000000000-0x000002e60000 : "NAND simulator partition 0"
[13202.360129] 0x000002e60000-0x000006900000 : "NAND simulator partition 1"
[13202.360835] 0x000006900000-0x0000069c0000 : "NAND simulator partition 2"
[13202.361180] 0x0000069c0000-0x000007700000 : "NAND simulator partition 3"
[13202.363506] 0x000007700000-0x0000081c0000 : "NAND simulator partition 4"
[13202.365146] 0x0000081c0000-0x000008200000 : "NAND simulator partition 5"
[13202.366440] 0x000008200000-0x000020000000 : "NAND simulator partition 6"
You can also view the MTD partition table via:
$ sudo cat /proc/mtd
dev: size erasesize name
mtd0: 20000000 00020000 "NAND 512MiB 1,8V 8-bit"
mtd1: 02e60000 00020000 "NAND simulator partition 0"
mtd2: 03aa0000 00020000 "NAND simulator partition 1"
mtd3: 000c0000 00020000 "NAND simulator partition 2"
mtd4: 00d40000 00020000 "NAND simulator partition 3"
mtd5: 00ac0000 00020000 "NAND simulator partition 4"
mtd6: 00040000 00020000 "NAND simulator partition 5"
mtd7: 17e00000 00020000 "NAND simulator partition 6"
mtd0 represents the entire MTD device. Write the extracted firmware into this device; since the simulation runs in RAM, the operation is extremely fast.
sudo dd if=NAND.bin of=/dev/mtd0 bs=512M count=1
Examining the ubi module parameters reveals an mtd parameter. However, using this may fail if the default VID header offset (512) does not match the target image.
sudo modprobe ubi mtd=0
$ dmesg
[38418.429799] ubi0: attaching mtd5
[38418.429924] ubi0 error: validate_ec_hdr [ubi]: bad VID header offset 2048, expected 512
[38418.429937] ubi0 error: validate_ec_hdr [ubi]: bad EC header
[38418.429944] Erase counter header dump:
[38418.429946] magic 0x55424923
[38418.429948] version 1
[38418.429950] ec 5
[38418.429952] vid_hdr_offset 2048
[38418.429953] data_offset 4096
[38418.429955] image_seq 34870392
[38418.429957] hdr_crc 0x11db9c17
Instead, load the ubi module first, then use ubiattach from mtd-utils to specify the parameters explicitly:
sudo modprobe ubi
sudo ubiattach /dev/ubi_ctrl -m 2 -O 2048
You should then see attach success messages:
[43880.484837] ubi0: default fastmap pool size: 20
[43880.484841] ubi0: default fastmap WL pool size: 10
[43880.484843] ubi0: attaching mtd2
[43880.486802] ubi0: attached by fastmap
[43880.486806] ubi0: fastmap pool size: 20
[43880.486808] ubi0: fastmap WL pool size: 10
[43880.491518] ubi0: attached mtd2 (name "NAND simulator partition 1", size 58 MiB)
[43880.491521] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
[43880.491523] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 512
[43880.491525] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
[43880.491527] ubi0: good PEBs: 469, bad PEBs: 0, corrupted PEBs: 0
[43880.491529] ubi0: user volume: 1, internal volumes: 1, max. volumes count: 128
[43880.491532] ubi0: max/mean erase counter: 14/5, WL threshold: 4096, image sequence number: 1328192
[43880.491534] ubi0: available PEBs: 0, total reserved PEBs: 469, PEBs reserved for bad PEB handling: 80
[43880.491617] ubi0: background thread "ubi_bgt0d" started, PID 25777
Next, mount the UBIFS volume to access the filesystem contents.
$ mkdir /tmp/modem
$ sudo mount -t ubifs ubi0_0 /tmp/modem
$ ls /tmp/image
bdwlan30.bin mba.b03 mba.mdt modem.b03 modem.b08 modem.b12 modem.b16 modem.b22 otp30.bin
mba.b00 mba.b04 modem.b00 modem.b05 modem.b09 modem.b13 modem.b19 modem.b23 qwlan30.bin
mba.b01 mba.b05 modem.b01 modem.b06 modem.b10 modem.b14 modem.b20 modem.b24 utf30.bin
mba.b02 mba.mbn modem.b02 modem.b07 modem.b11 modem.b15 modem.b21 modem.mdt
In some cases, SquashFS runs on top of UBI, which causes standard UBIFS mounts to fail:
[ 214.800087] UBIFS error (ubi0:0 pid 3848): ubifs_read_node [ubifs]: bad node type (1 but expected 6)
[ 214.800093] UBIFS error (ubi0:0 pid 3848): ubifs_read_node [ubifs]: bad node at LEB 0:0, LEB mapping status 1
[ 214.800094] Not a node, first 24 bytes:
[ 214.800095] 00000000: 68 73 71 73 46 0c 00 00 5a 9c 25 5d 00 00 02 00 ac 00 00 00 01 00 11 00 hsqsF
The hsqs magic bytes identify this as a SquashFS image. It can be extracted directly as SquashFS:
sudo dd if=/dev/ubi0_0 of=./ubi0_0
unsquashfs ./ubi0_0
Detach/unload:
sudo umount MOUNTED_DIR
sudo ubidetach /dev/ubi_ctrl -m 0
sudo modprobe -r ubi
sudo modprobe -r nandsim
Reading with UBI Reader
Install via pip (or download): https://github.com/jrspruitt/ubi_reader
sudo pip install ubi_reader
First, check whether it correctly identifies UBI metadata:
ubireader_display_info [options] path/to/file
Extract all files (but it will fail if another filesystem is present):
ubireader_extract_files [options] path/to/file
It is recommended to first restore PEBs to LEBs before analyzing individual volumes:

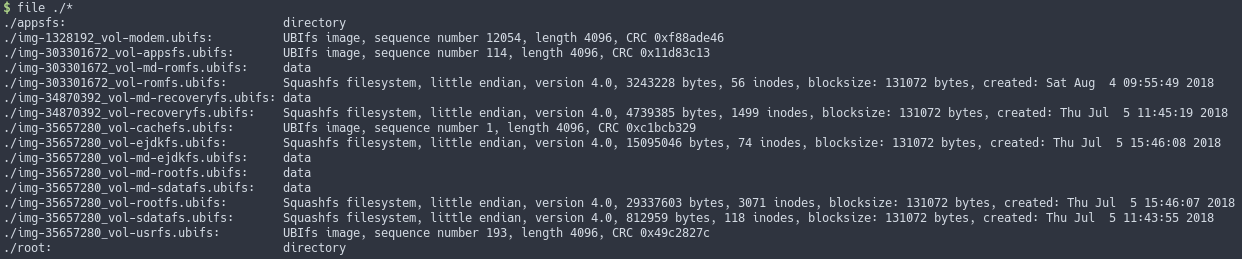

ubireader_extract_images [options] path/to/file
Repacking UBI
After mounting UBIFS, modification and repacking might be required. Direct use of dd is not suitable for this task.
First, pay attention to the output from ubiattach—it prints LEB information:
$ sudo ubiattach /dev/ubi_ctrl -m 7 -O 2048
UBI device number 0, total 240 LEBs (30474240 bytes, 29.1 MiB), available 0 LEBs (0 bytes), LEB size 126976 bytes (124.0 KiB)
There are 240 LEBs in total, with each LEB being 126976 bytes. These parameters must be passed to mkfs.ubifs to build the UBIFS image:
# mtd5
sudo mkfs.ubifs -m 2048 -e 126976 -c 240 -F -r ./UBI_1 rootfs.img
# mtd9
sudo mkfs.ubifs -m 2048 -e 126976 -c 240 -F -r ./UBI_2 rootfs.img
sudo mkfs.ubifs -m 2048 -e 126976 -c 240 -R 1 -x lzo -r ./UBI_1 rootfs.img
sudo mkfs.ubifs -m 2048 -e 126976 -c 240 -x lzo -r ./rootfs rootfs.img
Create ubi_config.ini:
vi ubi_config.ini
The vol_size must match the image size. Additionally, the file must end with an empty line to avoid the following error:
ubinize: error!: cannot load the input ini file "ubi_config.ini"
[rootfs]
mode=ubi
image=rootfs.img
vol_id=0
vol_size=9904128
vol_type=dynamic
vol_name=rootfs
vol_alignment=1
vol_flags=autoresize
Finally, use ubinize to generate the UBI image:
sudo ubinize -o rootfs.ubi -p 131072 -m 2048 -s 512 -e 2 -Q 0 -O 2048 -x1 ubi_config.ini
Where:
-e: Number of eraseblocks (default is 0). This can be quickly verified withbinwalk.-Q: Image sequence number, viewable withubi_display_info.-x: UBI version (default is 1).-s: Sub-page size. Not all NAND flash supports sub-pages. Typically, SLC NAND with 2048-byte pages uses 4 sub-pages of 512 bytes, whereas MLC usually does not have sub-pages.-m: Page size.-p: Physical eraseblock size. A physical block usually consists of 64 pages; refer to the NAND datasheet for specifics.
Below is an example of flashing rootfs.ubi to mtd7:
sudo ubinize -v -o rootfs.ubi -p 131072 -m 2048 -s 512 -O 2048 ubi_config.ini
sudo ubiformat /dev/mtd7 -O 2048 -s 512 -f rootfs.ubi
For SquashFS filesystems, building UBIFS is unnecessary. After modifying the contents, simply repack SquashFS using mksquashfs. Ensure that ownership and permissions are correct (e.g., if the target system runs as root, pack as root). Then, use ubinize to wrap it into a UBI image.
sudo mksquashfs ./squashfs-root/* rootfs.squashfs
CC BY-NC-SA 4.0
