固件提取系列 - SD卡解锁

前言

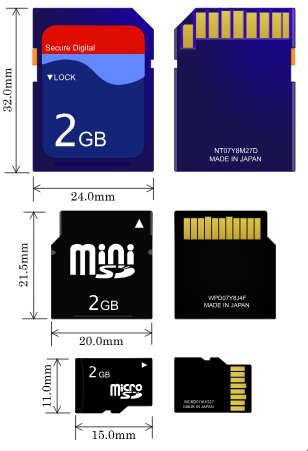

SD卡(Secure Digital Memory Card)是一种存储介质，基于NAND闪存技术，作为MMC(Multimedia Card)的替代。一般用于多媒体播放器，相机，手机，随后也大量用于IoT设备和汽车电子。根据SD卡尺寸，可以分为SD、miniSD、microSD。

sd_size

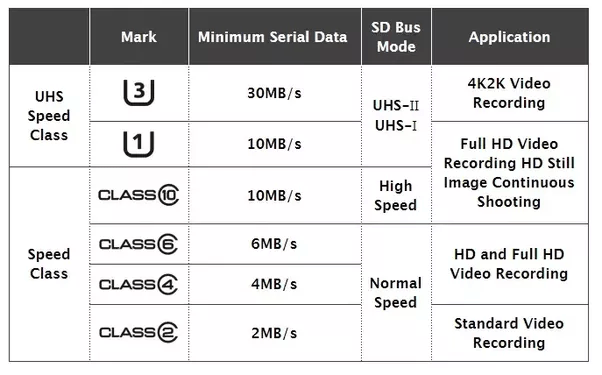

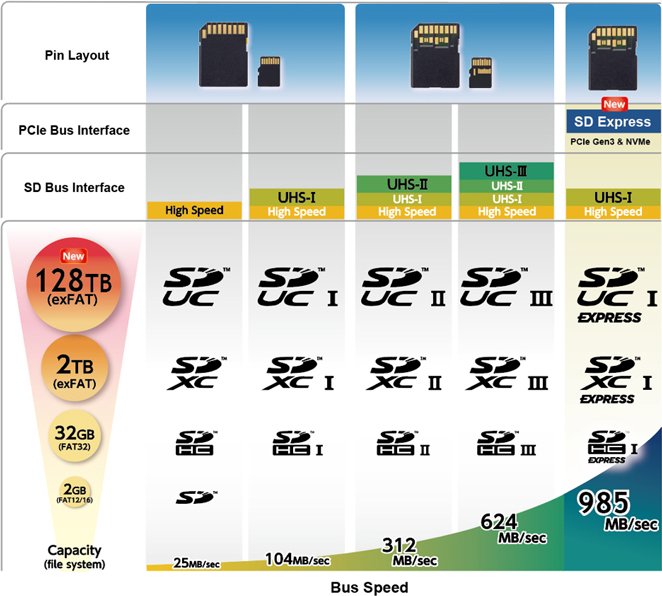

SD卡的速度等级标准当前在用的有两种，一种是普通速度标记，另一种是UHS速度标记，不同速度标准对应的总线模式也不同。现在SD协会又出了新的速度等级标准：Video Speed Class，使用UHS总线。SD卡的容量也有标准，从SDSC到SDUC。

Micro-SD-speeds bus_speed_img

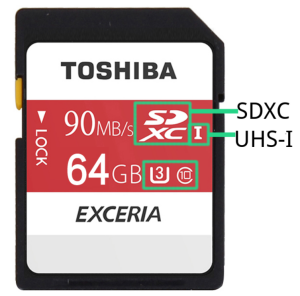

SD卡的参数可以在SD卡的贴纸或者丝印上看到。

sd_sticker

而microSD卡原名是TF卡(Trans-flash Card)，SD插槽兼容MMC卡，也可以通过飞线方式将eMMC接到SD插槽。

sd_emmc

本文基于SD物理层简化规范第六版，主要研究解锁机制。

SDIO(Secure Digital Input Output)是由SD物理层规范修改而来，属于SD规范的扩展，除了支持SDIO规范的储存卡，还支持SDIO外围设备，例如WiFi模块、GPS模块、CMOS传感器模块等。

I/O informations

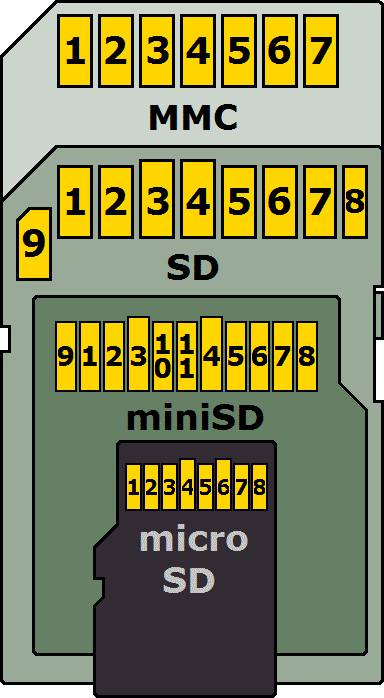

下面是MMC卡和SD卡引脚的对比

pin_compare

在不同的总线协议和传输模式下，这些引脚都负责不同的功能，本文主要研究SD模式的规范。在Type一栏，有如下定义：

S - Power Supply
I - Input
O - Output using Pull Push Drivers
PP - I/O using Pull Push Drivers

Pin #	Name	Type	Description
1	CD/DAT3	I/O/PP	Card Detect/Data Line [Bit3]
2	CMD	I/O/PP	Command/Response
3	VSS1	S	Supply voltage ground
4	VDD	S	Supply voltage
5	CLK	I	Clock
6	VSS2	S	Supply voltage ground
7	DAT0	I/O/PP	Data Line [Bit0]
8	DAT1	I/O/PP	Data Line [Bit1]
9	DAT2	I/O/PP	Data Line [Bit2]

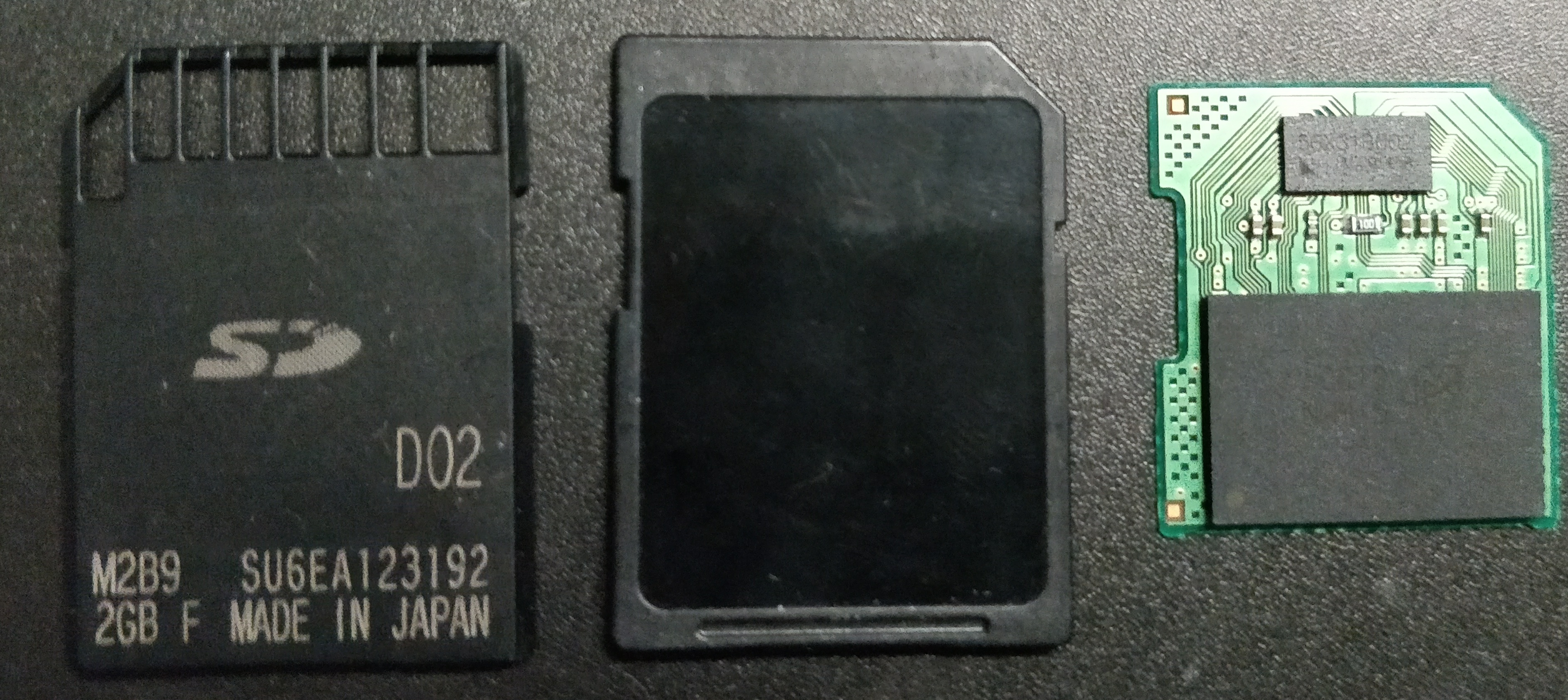

下面是我们要研究的SD卡，SDSC，刚好最大2GB，上面印着M2B9 2GB Made in Japan，网上不能搜索到这些信息。

SD_card_internal

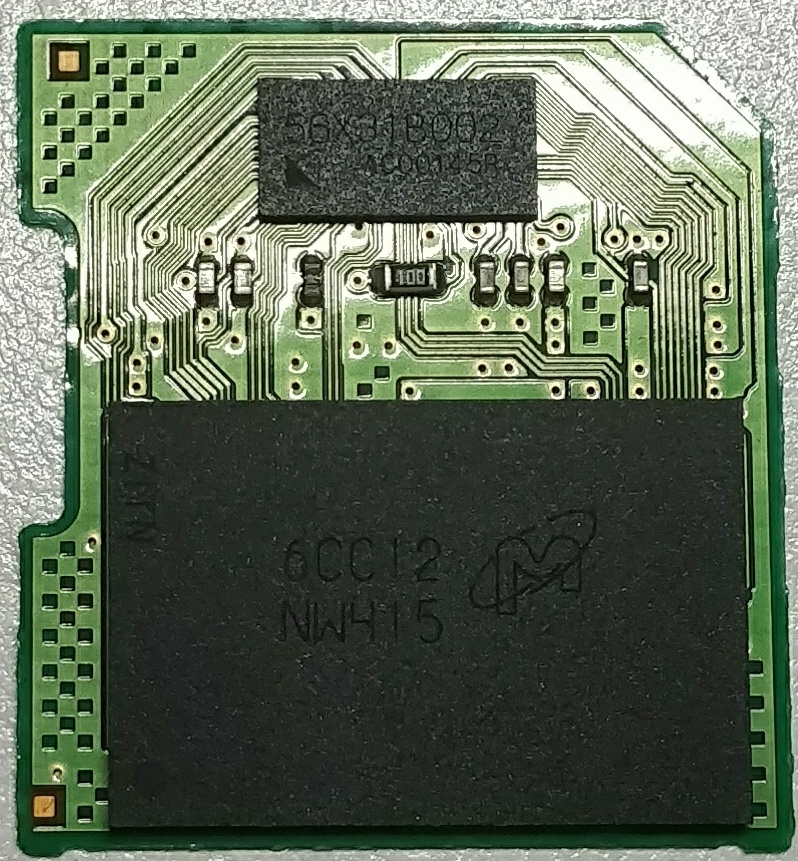

再看SD主控芯片，56X31B002 AC00145R，无法搜索到。但是下面的存储芯片印有镁光Logo，在FBGA & Component Marking Decoder网站可以查询FPGA Code。是SLC NAND Flash，VBGA100封装，但是官网信息不太准确，只有16GB的版本。

SD_card_internal2

Registers

OCR,CID,CSD,SCR携带了卡的特定信息，RCA和DSR储存着实际的配置参数，SSR和CSR则携带状态信息。因为规范制定者有强迫症，所以寄存器都是三位缩写，如果三位不能准确表达意思，就把R去掉。

Name	length(bit)	Description	Optional
CID	128	Card Identification Data，包括厂商ID、OEM ID、产品名、产品编号、生产日期以及校验和	必选
RCA	16	Relative Card Address，用于寻址，默认0x0000，SPI模式下不可用	必选
DSR	16	Driver Stage Register，用于改善总线性能	可选
CSD	128	Card Special Data，较为复杂，包含关于卡各种操作的条件信息：错误类型、最大数据访问时间、速率、DSR可用状态等	必选
SCR	64	SD Configuration Register，包含了SD卡支持的特性，规范版本	必选
OCR	32	Operation Condition Register，携带了当前电源信息	必选
SSR	512	SD Status Register，包含当前SD卡特性和应用特性的状态信息，如总线数据宽度、安全模式、SD卡类型、速度等	必选
CSR	32	Card Status Register，包含了当前卡执行命令的状态信息，体现在响应中，如上锁状态，错误信息等	必选

Architecture

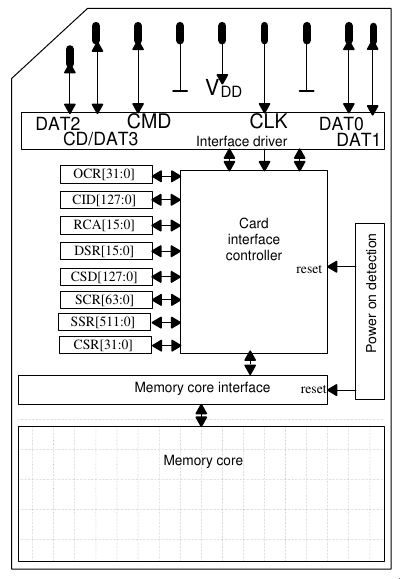

卡内带有上电检测电路，与主控接口和存储区接口相连，每个引脚和卡主控相连，主控通过存储接口对存储区进行操作。

architecture

SDIO

而在SDIO规范中，定义了两种类型的SDIO卡：低速卡与高速卡，定义了SDIO卡的三种模式：

SPI bus mode
One-bit SD bus mode - 指令和数据分离的传输模式
Four-bit SD bus mode - 高速卡支持，指令单独占用一个通道，使用另外4通道传输数据，SD卡的默认模式

SD Bus Protocol

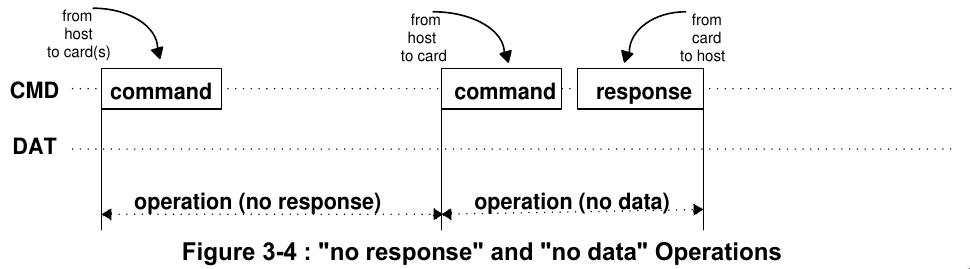

SD总线通信主要由CMD(Command Token, 操作命令)、DAT(Data, 数据)组成。CMD和DAT由不同的通道并行传输，CMD和Response走同一条通道，CMD来自Host(上位机)，Response(响应)来自SD卡，Response只针对特定的CMD出现。

sd_protocal

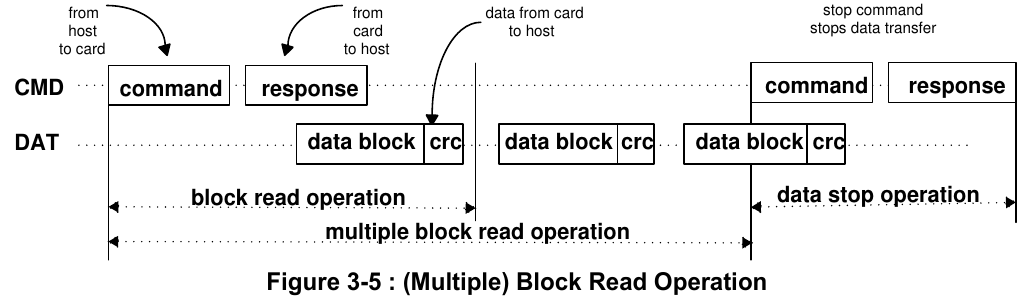

SD规定以块为单位进行读写操作，紧随着CMD后出现。每个数据块结尾带有CRC校验位。由终止操作由终止指令完成。

sd_protocal_r

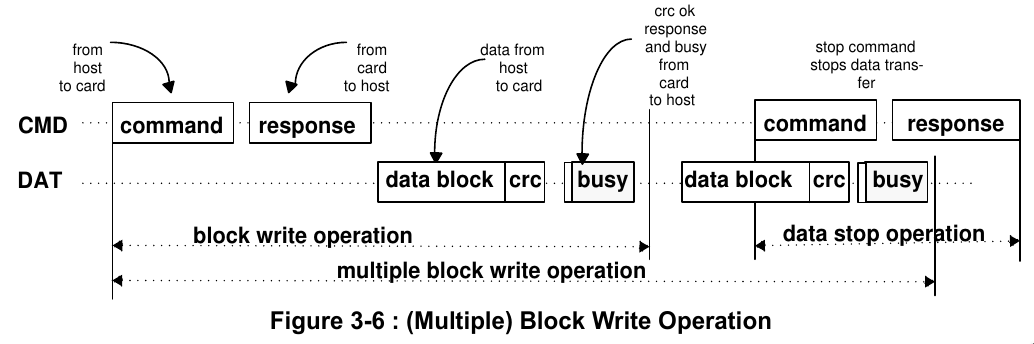

写过程会附带一个busy信号。

sd_protocal_w

CMD Format

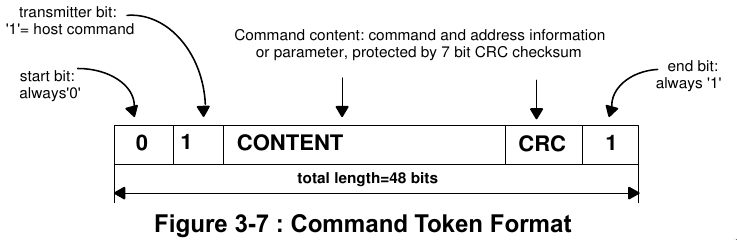

Command Token的长度是48-bit，起始位是0，传输位是1，表示来自Host的数据。Content携带了命令，地址信息以及参数。结尾带有7位的CRC(Cyclic Redundancy Check)，结束位是0。因为这个特性，Response的首个字节比CMD的首个字节小0x40。

cmd_format

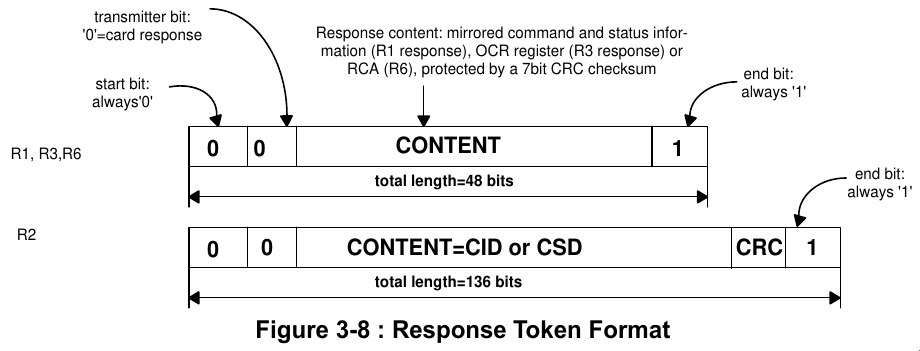

Response Token有四种场景，根据场景的不同采用不同的长度，分别是48-bit(R1,R3,R6)，136-bit(R2)。传输位是0，表示来自SD卡的数据。

response_format

Data Packet Format

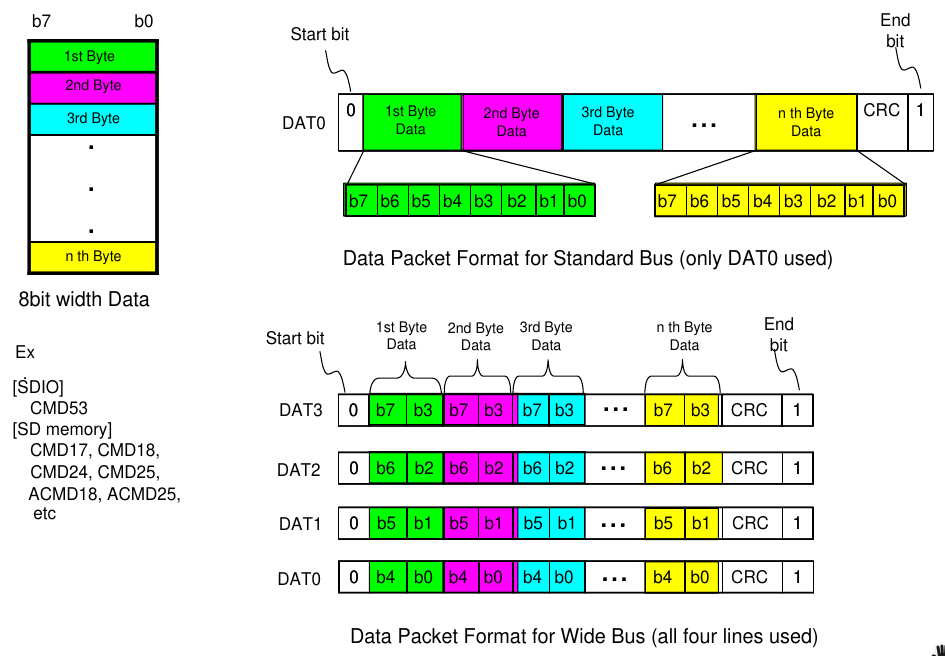

通常模式下，数据通过DAT[0-3]引脚传输。和CMD一样，起始位0，结束位1，带有CRC校验。总线宽度默认1-bit。

data_packet_format

CRC7

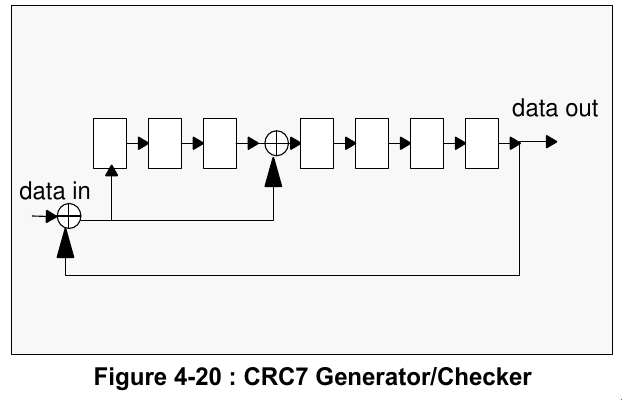

SD卡使用CRC7/MMC算法作为CMD的校验，公式如下 crc7_calc 将多项式转化为二进制G(x)

10001001

在数据帧M(x)后补上长度位divisor-1，就是7，使用模2除法，数据帧除以10001001得到CRC

crc7

CRC16

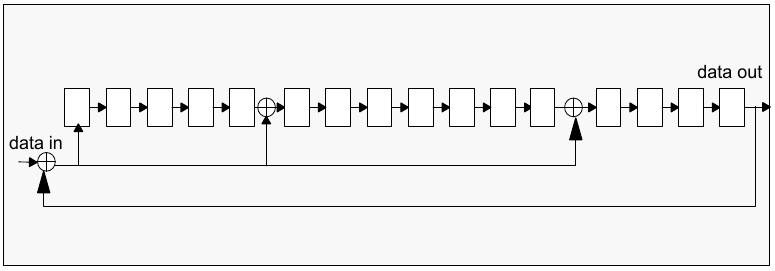

SD卡使用CRC-16/CCITT-XMODEM算法作为Data的校验。宽总线模式下每行独立计算CRC，公式如下

crc16_calc

将多项式转化为二进制G(x)，第16位超出长度，忽略。

0001000000100001

crc16

Response Type

SD卡总共有五种类型的响应，SDIO支持附加的响应类型R4，R5。除R3以外，响应包的结尾都有CRC校验。

R1 正常响应命令，可携带busy信号(R1b)
R2 CID,CSD响应
R3 OCR响应
R6 RCA响应
R7 卡接口条件响应

不同响应对应的格式

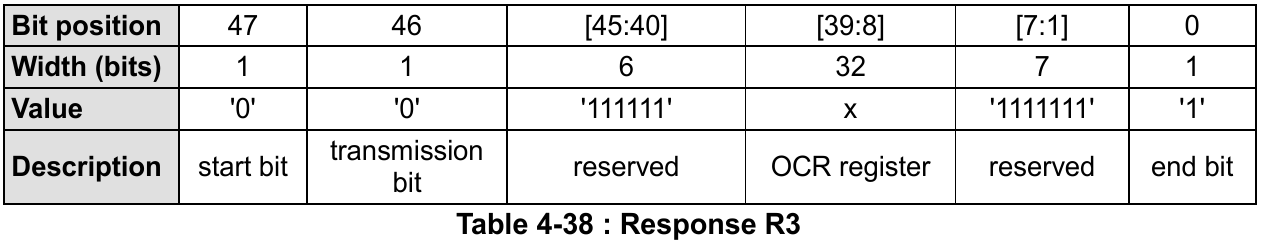

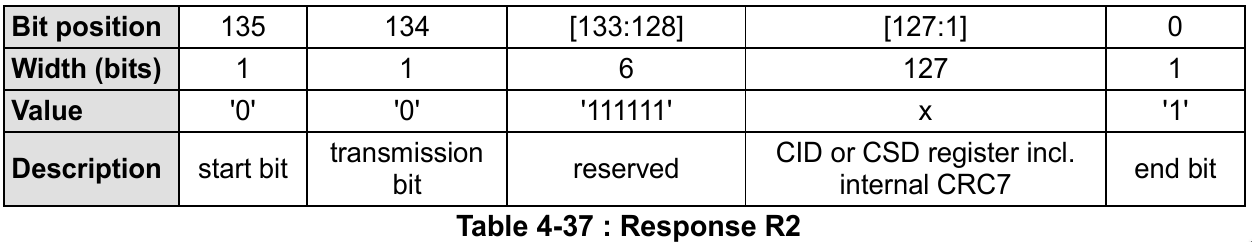

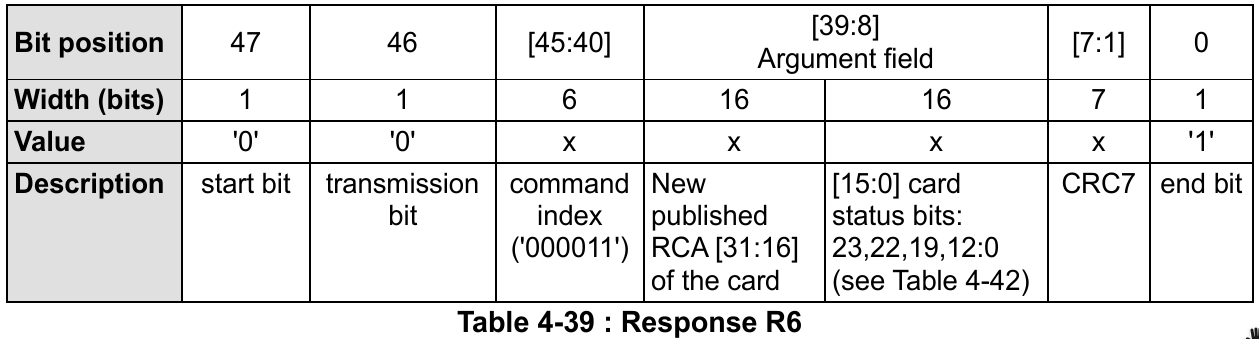

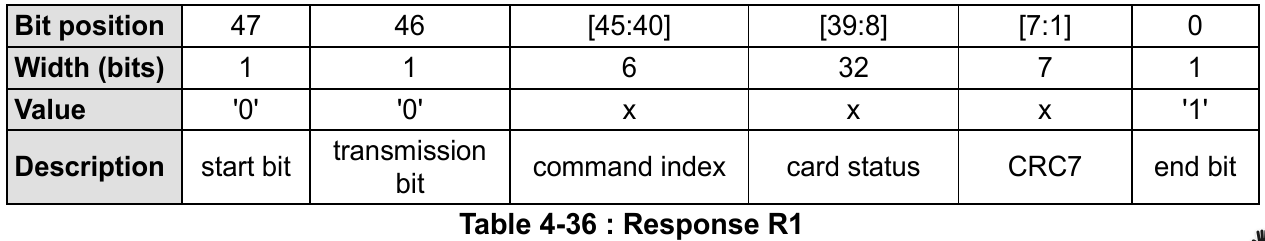

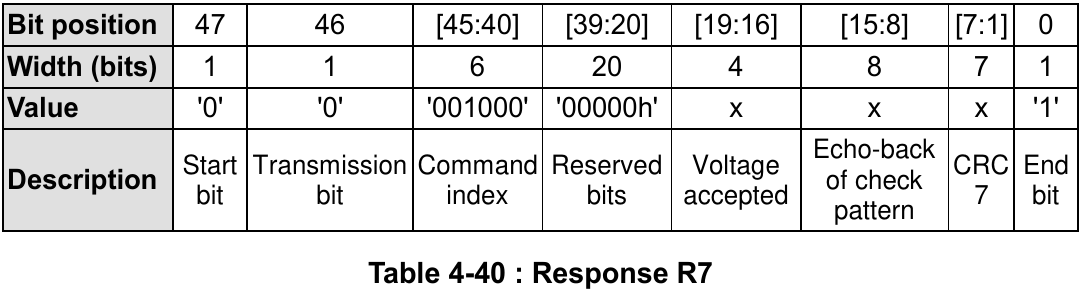

R1的参数部分是32位，对应了卡的状态，由于版本迭代问题，规范里没有明确说是CSR，CSR寄存器也是后面定义的。R2直接返回CID或CSD的数据。R3返回OCR的数据。

response_r1 response_r2 response_r3 response_r6 response_r7

Function mode

SD卡的操作模式有两种种，默认是inactive：

card indentification mode 卡认证模式
data transfer mode 数据传输模式

UHS-II下和SD模式下，卡认证模式不同。

Command

Command主要有两种类型————广播和寻址，具体细分有如下四种:

broadcast commands (bc), no response
broadcast commands with response (bcr) (Note: No open drain on SD card)
addressed (point-to-point) commands (ac), no data transfer on DAT lines
addressed (point-to-point) data transfer commands (adtc), data transfer on DAT lines

CMD5，CMD52-54是SDIO特有的模式

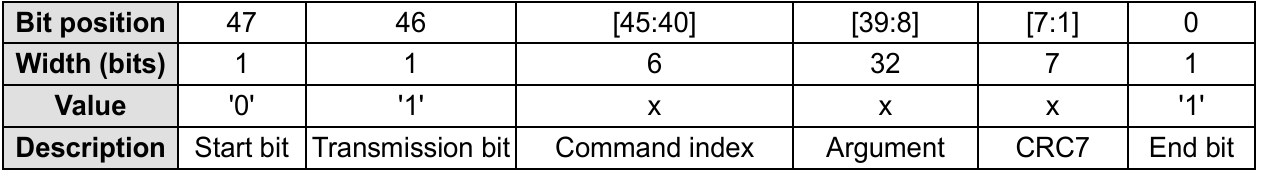

最高有效位(Most Significant Bit, MSB)在前，最低有效位(Least Significant Bit, LSB)在后。

command_format

有如下分类：

Class #	Name
0	Basic Commands
1	Command and Queue Function Commands
2	Block Oriented Read Commands
3	Reversed
4	Block Oriented Write Commands
5	Erase Commands
6	Block Oriented Write Protection Commands
7	Lock Card
8	Application Specific Commands
9	I/O Mode Commands
10	Switch Function Commands
11	Function Extension Commands

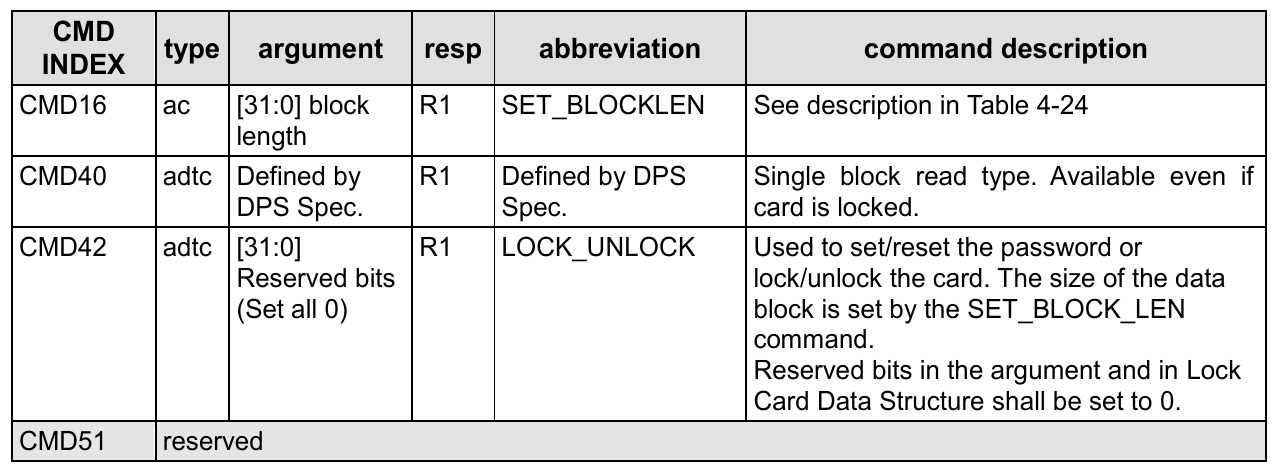

Class 7 锁卡相关命令有三个，其中CMD16设定块长度，用来设置密码。CMD42进行上锁/解锁操作。上锁状态的卡可以响应Class 0的命令.

card_lock_class

在SDSC卡中，可通过SET_BLOCK_LEN来指定数据的块长度。而在SDHC和SDXC卡中，块长度固定为512bytes。

Application-Specific Commands

Application-Specific Commands是Commands的扩展，CMD55是触发ACMD的条件，ACMD41也就是CMD55接一个CMD41。

ACMD41是初始化命令，设定HCS(Host Capacity Support)，决定SD卡的类型，电源控制以及电平。ACMD6是设置总线宽度，决定使用1-bit还是4-bits的Data传输。只有未解锁和传输状态才能使用ACMD6。

Status Information

SD卡状态信息可以在R1类型的响应里看到，比如CMD13，SD卡有三种状态信息：

SD Status
Card Status
Task Status

下面是每一位的类型定义：

E - Error bit S - Status bit R - Detected and set for the actual command response X - Detected and set during command execution. 上位机可以通过执行命令的响应获得状态信息

还有状态位的清除条件：

A - According to the card current status. B - Always related to the previous command. 发送特定CMD来清除 C - Clear by read.

R1响应携带卡状态信息，长度32-bit，储存在CSR。下面是CSR每一位的定义，预留位已经省略。

Bits	Identifier	Type	Value	Description	Clear Condition
31	OUT_OF_RANGE	E R X	‘0’= no error ‘1’= error	The command’s argument was out of the allowed range for this card.	C
30	ADDRESS_ERROR	E R X	‘0’= no error ‘1’= error	A misaligned address which did not match the block length was used in the command.	C
29	BLOCK_LEN_ERROR	E R X	‘0’= no error ‘1’= error	The transferred block length is not allowed for this card, or the number of transferred bytes does not match the block length.	C
28	ERASE_SEQ_ERROR	E R	‘0’= no error ‘1’= error	An error in the sequence of erasecommands occurred.	C
27	ERASE_PARAM	E R X	‘0’= no error ‘1’= error	An invalid selection of write-blocksfor erase occurred.	C
26	WP_VIOLATION	E R X	‘0’= no protected ‘1’= protected	Set when the host attempts to writeto a protected block or to the temporary or permanent write protected card.	C
25	CARD_IS_LOCKED	S X	‘0’= card unlocked ‘1’= card locked	When set, signals that the card is locked by the host.	A
24	LOCK_UNLOCK_FAILED	E R X	‘0’= no error ‘1’= error	Set when a sequence or passworderror has been detected in lock/unlock card command.	C
23	COM_CRC_ERROR	E R	‘0’= no error ‘1’= error	The CRC check of the previous command failed.	B
22	ILLEGAL_COMMAND	E R	‘0’= no error ‘1’= error	Command not legal for the cardstate	B
21	CARD_ECC_FAILED	E R X	‘0’= no error ‘1’= error	Card internal ECC was applied butfailed to correct the data.	C
20	CC_ERROR	E R X	‘0’= no error ‘1’= error	Internal card controller error.	C
19	ERROR	E R X	‘0’= no error ‘1’= error	A general or an unknown error occurred during the operation.	C
16	CSD_OVERWRITE	E R X	‘0’= no error ‘1’= error	Can be either one of the following errors: - The read only section of the CSD does not match the card content. - An attempt to reverse the copy (set as original) or permanent WP (unprotected) bits was made.	C
15	WP_ERASE_SKIP	E R X	‘0’= no protected ‘1’= protected	Set when only partial address space was erased due to existing write protected blocks or the temporary or permanent write protected card was erased.	C
14	CARD_ECC_DISABLED	S X	‘0’= enabled ‘1’= disabled	The command has been executed without using the internal ECC.	A
13	ERASE_RESET	S R	‘0’= cleared ‘1’= set	An erase sequence was cleared before executing because an out of erase sequence command was received.	C
12:9	CURRENT_STATE	S X	0 = idle 1 = ready 2 = ident 3 = stby 4 = tran 5 = data 6 = rcv 7 = prg 8 = dis 9-14 = reserved 15 = reserved for I/O mode	The state of the card when receiving the command. If the command execution causes a state change, it will be visible to the host in the response to the next command. The four bits are interpreted as a binary coded number between 0 and 15.	B
8	READY_FOR_DATA	S X	‘0’= not ready ‘1’= ready	Corresponds to buffer empty signaling on the bus.	A
6	FX_EVENT	S X	‘0’= No event ‘1’= Event invoked	Extension Functions may set this bit to get host to deal with events.	A
5	APP_CMD	S R	‘0’= enabled ‘1’= disabled	The card will expect ACMD, or an indication that the command has been interpreted as ACMD.	C
3	AKE_SEQ_ERROR(SD Memory Card app. spec.)	E R	‘0’= no error ‘1’= error	Error in the sequence of the authentication process.	C

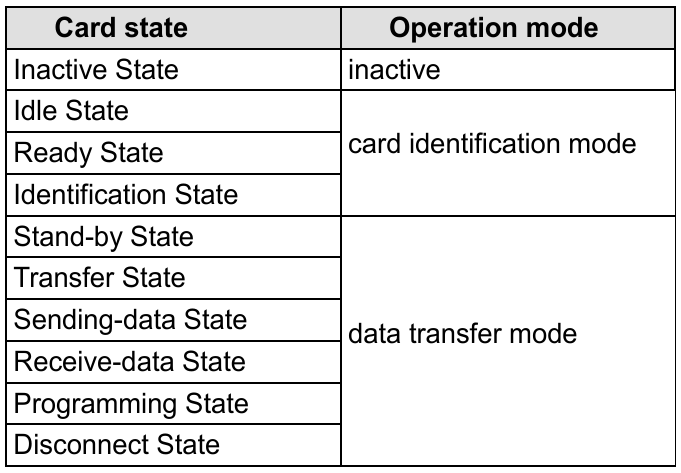

12:9是4位长度，转成10进制，对应着卡的操作阶段 state_mode

SD Protocol Sniff

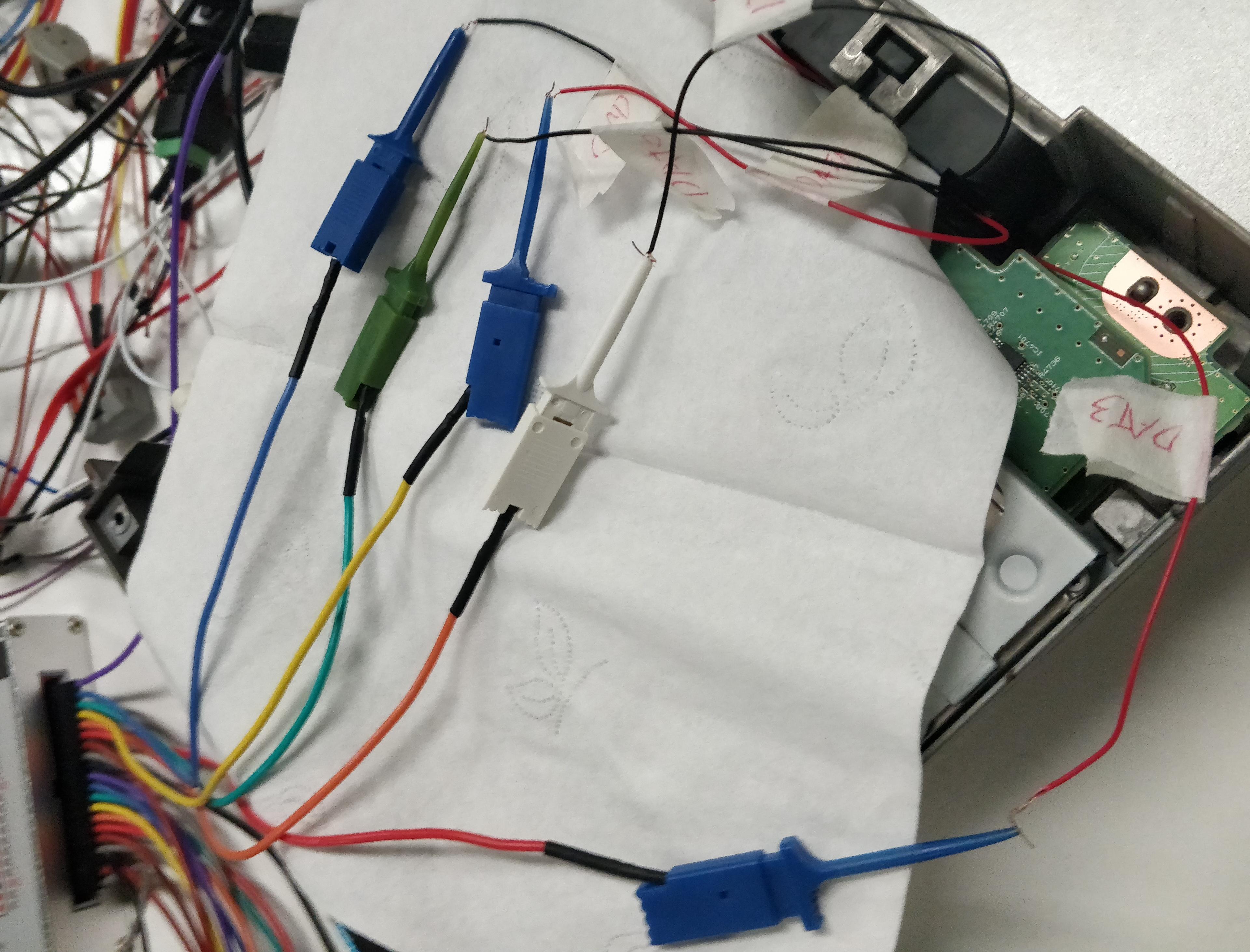

等长布线(wiring length maching)是PCB设计领域的术语，一般用于高速IO，比如DDR。飞线尽量使用等长线，控制时钟线与其他信号线之间的距离，这也是SD卡厂商对于PCB设计的要求。

wiring

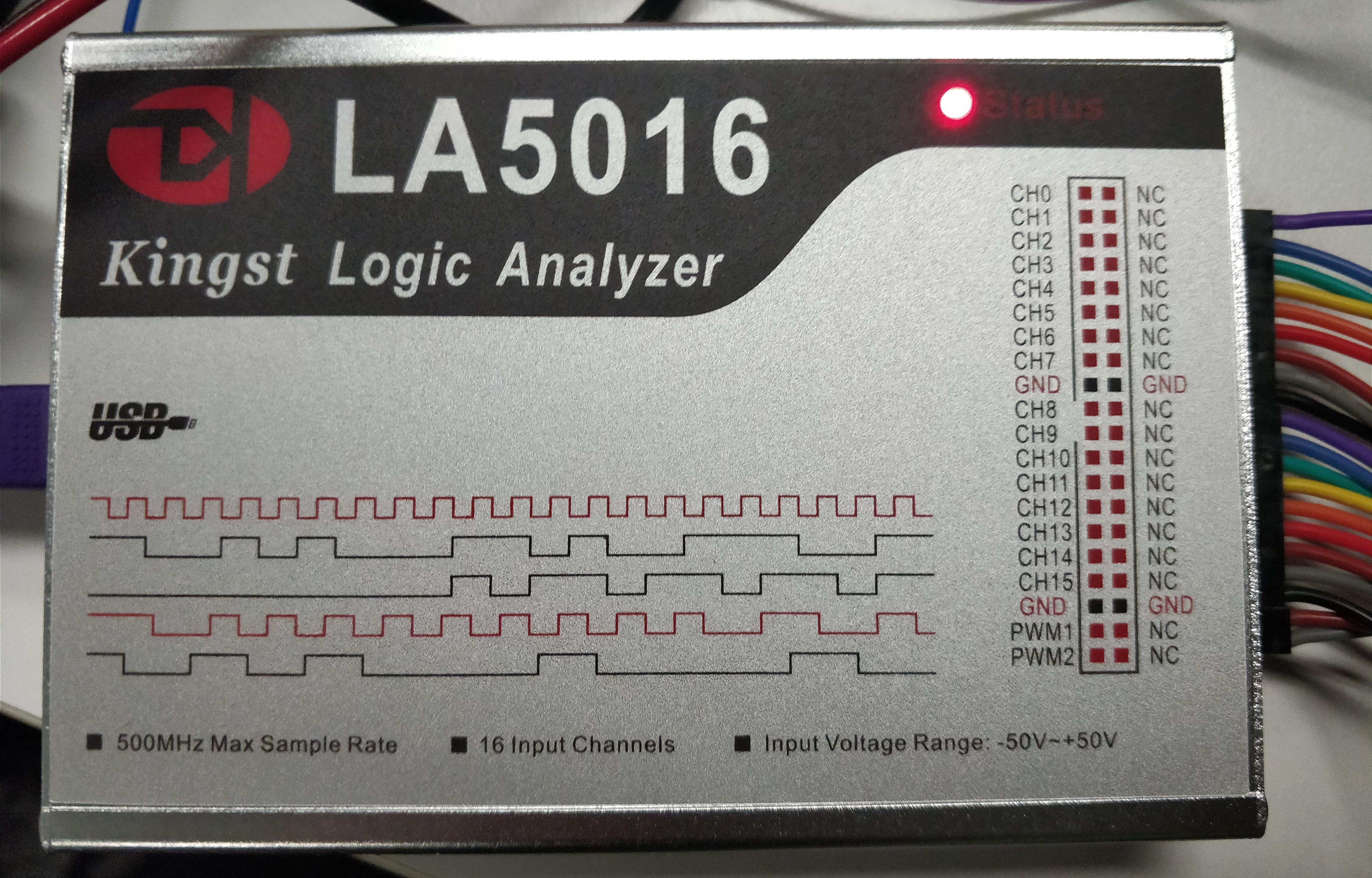

实际上SD高速模式下也就20MHz，是否使用等长线对数据的影响不大。最关键的还是逻辑分析仪的采样率，一开始使用100MHz采样率的逻辑分析仪经常乱码，后来换成500MHz采样率的LA5016就能正常使用。

LA5016

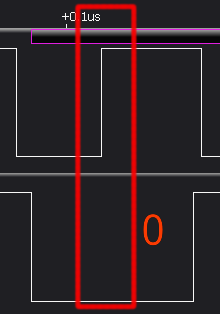

选择采样率和时间，另外选择电平。选择SDIO以及时钟上升沿(rising edge)触发。这样就能得到准确的逻辑电平。如下图，当上升沿对应的数据为0。

rising_edge

SD Unlock

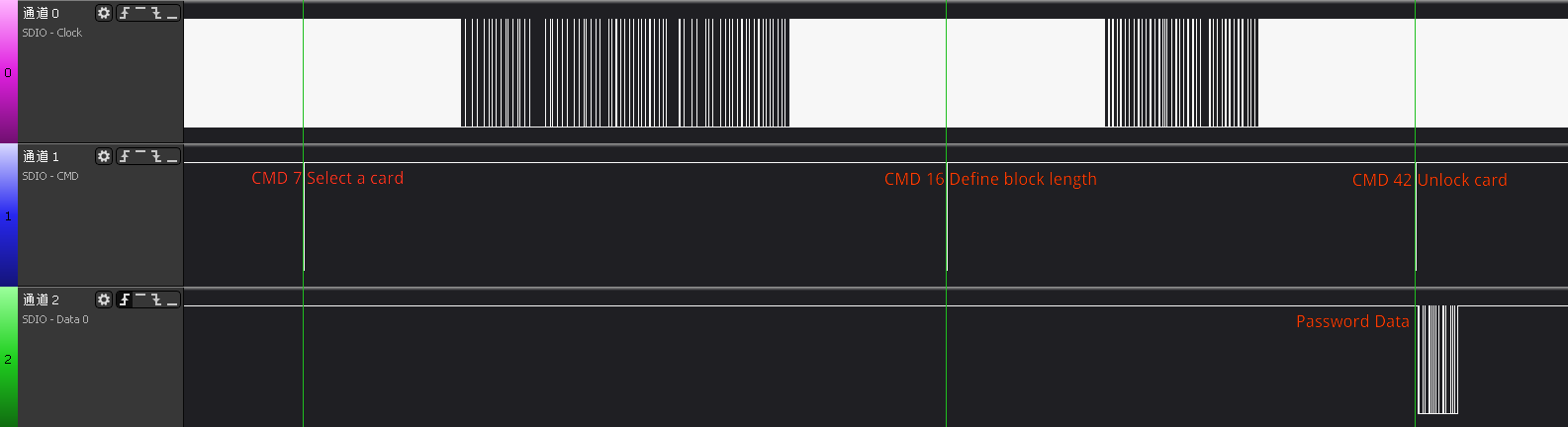

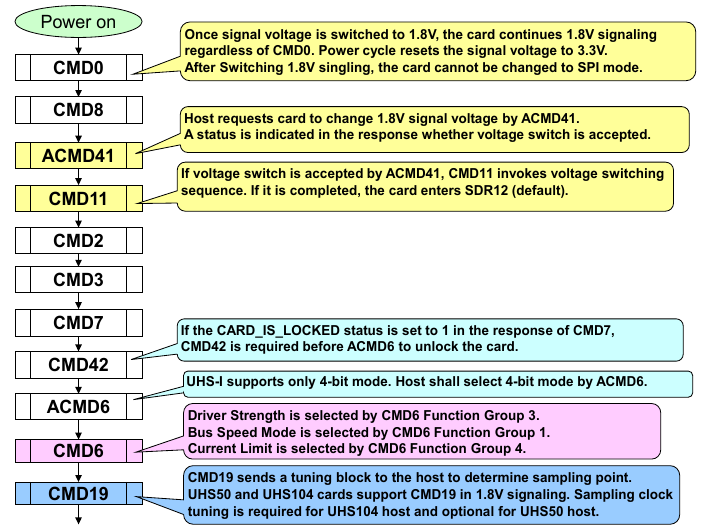

解锁的会话只在一次上电中生效，下一次上电时SD卡会自动回到上锁状态。解锁过程首先使用CMD7选择卡，如果设置了FEP，那么需要解锁COP。然后使用CMD16设置所需块长度，8-bit解锁操作 + 8-bit密码长度 + 实际密码的长度，最后发送CMD42解锁。

unlock_operations

CMD 42

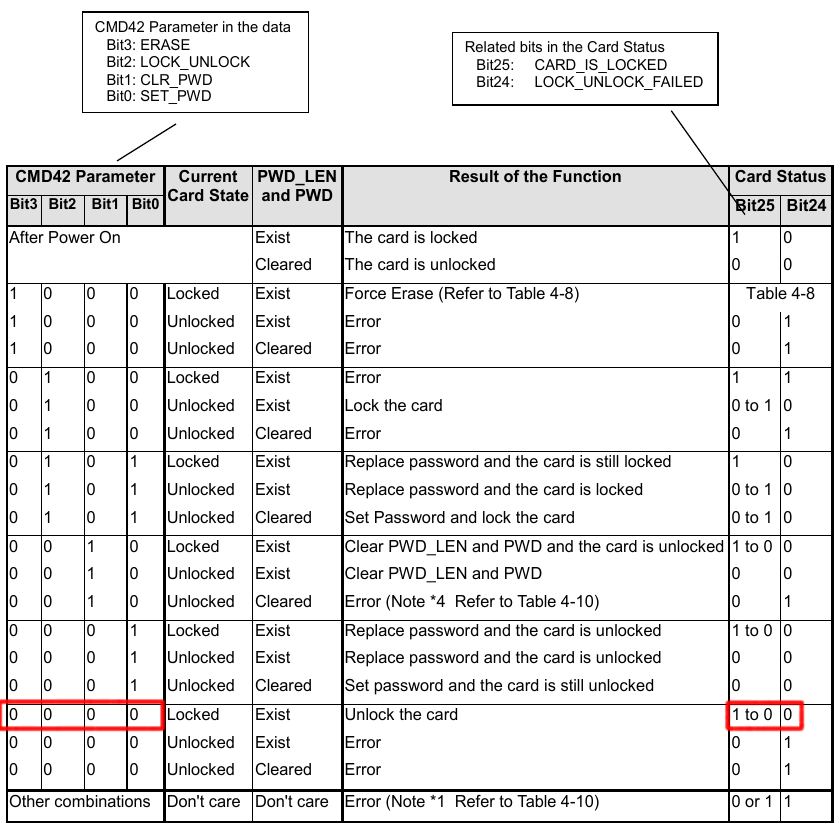

CMD42用于解锁设备，有V1.0和V2.0两个版本。解锁方式也有两种，一种是使用强制擦除密码(Force Erase Password, FEP)，另一种是使用密码解锁。只有COP(Card Ownership Protection)特性的SD卡，才带有非易失性的FEP寄存器。COP特性是SD规范6.0中新加的，市面上几乎很少有COP特性的SD卡。根据CMD的格式，01代表CMD请求，101010代表42，推断出01101010是CMD42的第一个字节，也就是6A。 CMD42的参数前4个bit应该是0，CSR的对应状态位bit-25应该由1变为0，bit-24为0。

unlock_parameters

通过逻辑分析仪解析上位机和SD卡之间的通信数据，得到了下面的报文，Command Index,Arguments,CRC7都符合前面的定义。

6A 00 00 00 00 51

最后一个字节51可以通过CRC7校验

本文研究的目标设备较老，不支持COP，解锁上锁位的0代表解锁操作，1代表上锁。最后使用CMD42，因此CMD42的操作参数是00000000，也就是CMD42[00h]

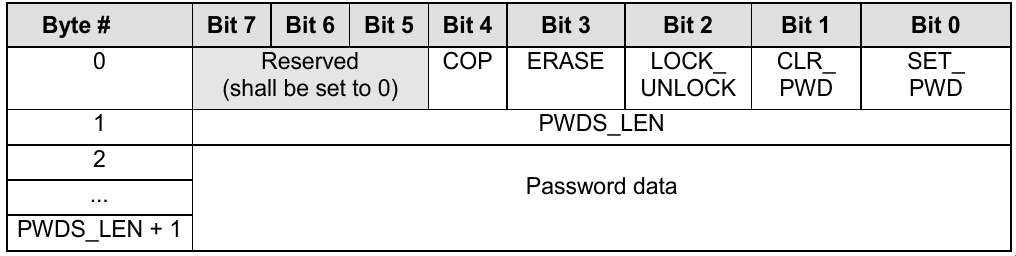

CMD42的Data部分，第一个字节描述了具体的操作，前三位预留，一般置0，第四位表示COP特性，在解锁过程中，后面四位都应该是0。第二个字节表示Password Length区间为8-bit，单位是byte。因此password最大长度是128-bytes，因此密码长度最大16字节，从第三位开始都是密码数据，最后带上16位的CRC。

password

CMD7的地址随机

47 4B 47 00 00 6F
[47:41] 01000111  start bit + Command index
[40:32] 01001011  RCA 4B
[31:24] 01000111  RCA 47
[23:16] 00000000  stuff bits
[15:8]  00000000
[7:0]   01101111  CRC7 + end bit

07 02 00 07 00 79

CMD16命令如下, 倒数第二行便是参数SET_BLOCKLEN，设置块长度，必须是偶数长度。响应类型是R1，0b00010010的十进制为18，也就是2字节的参数加上16-bytes密码

50 00 00 00 12 2F
[47:41] 01010000  start bit + Command index
[40:32] 00000000
[31:24] 00000000
[23:16] 00000000
[15:8]  00010010  SET_BLOCKLEN
[7:0]   00101111  CRC7 + end bit

CMD16的响应

10 02 00 09 00 07
[47:41] 00010000  start bit + Command index
[40:32] 00000010  Card Status
[31:24] 00000000  Card Status
[23:16] 00001001  Card Status
[15:8]  00000000  Card Status
[7:0]   00000111  CRC7 + end bit

CMD42响应的第一个字节为00101010也就是2A。响应类型是R1。

在逻辑分析仪抓取到了CMD42的响应

将Parameter字段转换成二进制，根据CSR定义，下面返回的状态是未解锁，ready,tran模式

2a 02 00 09 00 6f
[47:41] 00010000  start bit + Command index
[40:32] 00000010  Card Status Locked
[31:24] 00000000  Card Status
[23:16] 00001001  Card Status
[15:8]  00000000  Card Status
[7:0]   00000111  CRC7 + end bit

当CMD42的Data发送完成，再发送CMD13，根据CSR定义，下面返回的状态是已解锁，ready,tran模式，APP_CMD关闭

0D 00 00 09 00 07
[47:41] 00010000  start bit + Command index
[40:32] 00000000  Card Status Unlocked
[31:24] 00000000  Card Status
[23:16] 00001001  Card Status
[15:8]  00000000  Card Status
[7:0]   01101111  CRC7 + end bit

Analyze Data

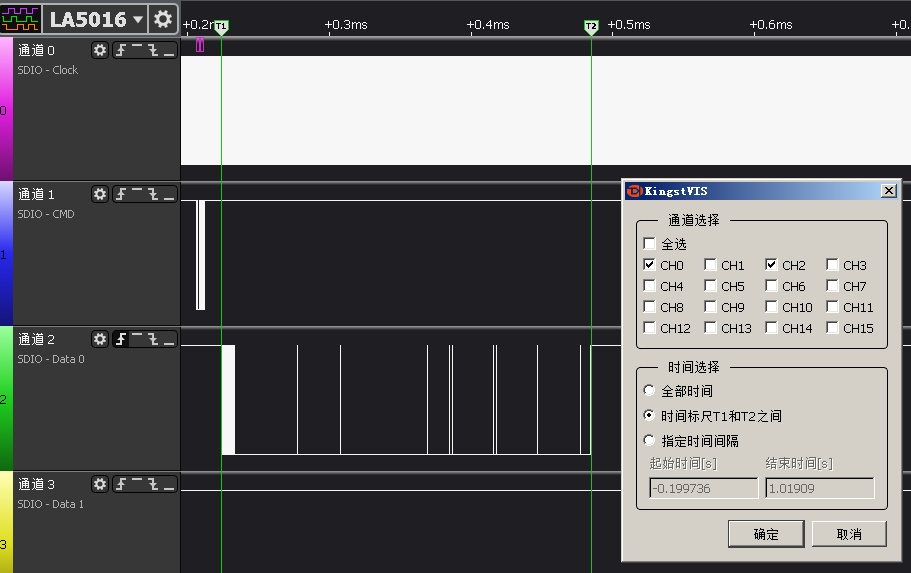

在KingstVIS找到Data0的信道，在CMD42后面对齐上升沿截取区间，导出时钟信道和Data0信道为TXT。

exporting_data

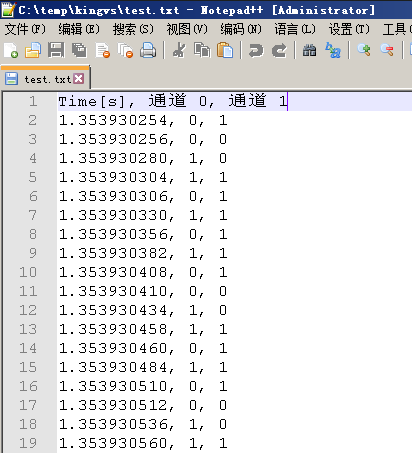

最后导出的数据实际上还是csv。在KingstVIS里选择CSV导出则为倒序，所以才选择TXT格式。这里字符编码是ANSI，在Linux下会乱码，所以把Title删除。

csv_data_exported

通过下面的脚本，可以将Data0数据打印成可读数据。

#!/usr/bin/env python3
# -*- coding: utf-8 -*-

import csv
import sys
import getopt
import binascii

def parse_csv(csv_file):
    try:
        with open(csv_file, 'r') as f:
            reader = csv.reader(f)
            last_ch0_v = 0
            bits = []
            for line in reader:
                current_ch0_v = int(line[1])
                if (current_ch0_v ^ last_ch0_v) and last_ch0_v == 0:
                    bits.append(str(int(line[2])))
                last_ch0_v = current_ch0_v
            return bits

    except Exception as e:
        print(e)

def crc16_calc(data):
    crc = 0x0000
    poly = 0x1021
    for b in data:
        cur_byte = 0xFF & b
        for i in range(0, 8):
            bit = ((cur_byte >> (7-i) & 1) == 1)
            c15 = ((crc >> 15 & 1) == 1)
            crc <<= 1
            if (c15 ^ bit):
                crc ^= poly
    return crc & 0xFFFF

if __name__ == '__main__':
    if len(sys.argv) < 3:
        usage()
    try:
        options, args = getopt.getopt(sys.argv[1:], "f:o")
        csv_file = ''
        output_file = ''
        for opt, arg in options:
            if opt == '-f':
                csv_file = arg
            elif opt == '-o':
                output_file = arg

        bits = parse_csv(csv_file)

        remainder = len(bits) % 8
        bits = bits[0:len(bits) - remainder]

        keys_list = []
        crc_data = []
        keys_len = 0

        # 去掉Data的第一位标志位
        if bits[0] == '0':
            bits = bits[1:]
            for i in range(0, len(bits), 8):
                byte = bits[i] + bits[i+1] + bits[i+2] + bits[i+3] + \
                    bits[i+4] + bits[i+5] + bits[i+6] + bits[i+7]
                n = i/8
                if n == 0 :
                    if int(byte, 2) == 0:
                        keys_list.append(int(byte, 2))
                    else:
                        print("CMD42 data block parameters error.")
                        exit()
                elif n == 1:
                    keys_len = int(byte, 2)
                    keys_list.append(keys_len)
                    print("Keys length: " + str(keys_len) + "-bytes")
                elif n > 1 and n <= (keys_len + 1):
                    keys_list.append(int(byte, 2))
                elif (keys_len + 2) <= n <= (keys_len + 3):
                    crc_data.append(int(byte, 2))
                else:
                    if (crc_data[0]*16*16 + crc_data[1]) == crc16_calc(keys_list):
                        x = bytearray(keys_list[2:keys_len+2])
                        print("Key:", str(binascii.b2a_hex(x))[2:(keys_len+1)*2])
                        print("CRC:", hex(crc16_calc(keys_list)))
                        print("\nAnalyse compeleted!")
                    else:
                        print("CRC error!")
                    exit()
        else:
            print("Data Error")

    except Exception as e:
        print(e)
        usage()

def usage():
    print("Usage:python kinstvis_sdio_parser.py -f test.csv")

去掉第一位起始位，解析CMD42 Data结构，再进行CRC校验，校验成功。

parse_key

密码如下

5ffca19ffcdb5899a82c4e265f99c76b

MMC Utils

下一步是写SD解锁工具，镁光的官方文档提供了添加上锁解锁功能的Demo，通过修改mmc-utils可以实现解锁。

git clone git://git.kernel.org/pub/scm/linux/kernel/git/cjb/mmc-utils.git

mmc-utils/mmc.h

#define MMC_SET_BLOCKLEN        16 /* ac [31:0] block len R1 */
#define MMC_LOCK_UNLOCK         42 /* adtc R1b */
#define MMC_CMD42_UNLOCK        0x0 /* UNLOCK */
#define MMC_CMD42_SET_PWD       0x1 /* SET_PWD */
#define MMC_CMD42_CLR_PWD       0x2 /* CLR_PWD */
#define MMC_CMD42_LOCK          0x4 /* LOCK */
#define MMC_CMD42_SET_LOCK      0x5 /* SET_PWD & LOCK */
#define MMC_CMD42_ERASE         0x8 /* ERASE */
#define MAX_PWD_LENGTH          32 /* max PWDS_LEN: old+new */
#define MMC_BLOCK_SIZE          512 /* data blk size for cmd42 */
#define MMC_R1_ERROR            (1 << 19) /* R1 bit19 */
#define MMC_R1_LOCK_ULOCK_FAIL  (1 << 24) /* R1 bit24 */

mmc-utils/mmc.c

{do_lock_unlock, -3,
        "cmd42", "<password> <s|c|l|u|e> <device>\n"
                "s\tset password\n"
                "c\tclear password\n"
                "l\tlock\n"
                "sl\tset password and lock\n"
                "u\tunlock\n"
                "e\tforce erase\n",
        NULL},

mmc-utils/mmc_cmds.h

//lock/unlock feature implementation
int do_lock_unlock(int nargs, char **argv)
{
    int fd, ret = 0;
    char *device;
    __u8 data_block[MMC_BLOCK_SIZE] = {0};
    __u8 data_block_onebyte[1] = {0};
    int block_size = 0;
    struct mmc_ioc_cmd idata;
    int cmd42_para;               //parameter of cmd42
    char pwd[MAX_PWD_LENGTH + 1]; //password
    int pwd_len;                  //password length
    __u32 r1_response;            //R1 response token
    if (nargs != 4)
    {
        fprintf(stderr, "Usage: mmc cmd42 <password> <s|c|l|u|e> <device> \n");
        exit(1);
    }
    strcpy(pwd, argv[1]);
    pwd_len = strlen(pwd);
    if (!strcmp("s", argv[2]))
    {
        cmd42_para = MMC_CMD42_SET_PWD;
        printf("Set password: password=%s ...\n", pwd);
    }
    else if (!strcmp("c", argv[2]))
    {
        cmd42_para = MMC_CMD42_CLR_PWD;
        printf("Clear password: password=%s ...\n", pwd);
    }
    else if (!strcmp("l", argv[2]))
    {
        cmd42_para = MMC_CMD42_LOCK;
        printf("Lock the card: password=%s ...\n", pwd);
    }
    else if (!strcmp("sl", argv[2]))
    {
        cmd42_para = MMC_CMD42_SET_LOCK;
        printf("Set password and lock the card: password - %s ...\n", pwd);
    }
    else if (!strcmp("u", argv[2]))
    {
        cmd42_para = MMC_CMD42_UNLOCK;
        printf("Unlock the card: password=%s ...\n", pwd);
    }
    else if (!strcmp("e", argv[2]))
    {
        cmd42_para = MMC_CMD42_ERASE;
        printf("Force erase ... (Warning: all card data will be erased together with PWD!)\n");
    }
    else
    {
        printf("Invalid parameter:\n"
               "s\tset password\n"
               "c\tclear password\n"
               "l\tlock\n"
               "sl\tset password and lock\n"
               "u\tunlock\n"
               "e\tforce erase\n");
        exit(1);
    }
    device = argv[nargs - 1];
    fd = open(device, O_RDWR);
    if (fd < 0)
    {
        perror("open");
        exit(1);
    }
    if (cmd42_para == MMC_CMD42_ERASE)
        block_size = 2; //set blk size to 2-byte for Force Erase @DDR50 compability
    else block_size = MMC_BLOCK_SIZE;
    ret = set_block_len(fd, block_size); //set data block size prior to cmd42
        printf("Set to data block length = %d byte(s).\n", block_size);
    if (cmd42_para == MMC_CMD42_ERASE)
    {
        data_block_onebyte[0] = cmd42_para;
    }
    else
    {
        data_block[0] = cmd42_para;
        data_block[1] = pwd_len;
        memcpy((char *)(data_block + 2), pwd, pwd_len);
    }
    memset(&idata, 0, sizeof(idata));
    idata.write_flag = 1;
    idata.opcode = MMC_LOCK_UNLOCK;
    idata.arg = 0; //set all 0 for cmd42 arg
    idata.flags = MMC_RSP_R1 | MMC_CMD_AC | MMC_CMD_ADTC;
    idata.blksz = block_size;
    idata.blocks = 1;
    if (cmd42_para == MMC_CMD42_ERASE)
        mmc_ioc_cmd_set_data(idata, data_block_onebyte);
    else
        mmc_ioc_cmd_set_data(idata, data_block);
    ret = ioctl(fd, MMC_IOC_CMD, &idata); //Issue CMD42
    r1_response = idata.response[0];
    printf("cmd42 response: 0x%08x\n", r1_response);
    if (r1_response & MMC_R1_ERROR)
    { //check CMD42 error
        printf("cmd42 error! Error code: 0x%08x\n", r1_response & MMC_R1_ERROR);
        ret = -1;
    }
    if (r1_response & MMC_R1_LOCK_ULOCK_FAIL)
    {
        //check lock/unlock error
        printf("Card lock/unlock fail! Error code: 0x%08x\n", r1_response & MMC_R1_LOCK_ULOCK_FAIL);
        ret = -1;
    }
    close(fd);
    return ret;
}

//change data block length
int set_block_len(int fd, int blk_len)
{
    int ret = 0;
    struct mmc_ioc_cmd idata;
    memset(&idata, 0, sizeof(idata));
    idata.opcode = MMC_SET_BLOCKLEN;
    idata.arg = blk_len;
    idata.flags = MMC_RSP_R1 | MMC_CMD_AC;
    ret = ioctl(fd, MMC_IOC_CMD, &idata);
    return ret;
}

实际上是通过ioctl控制的，编译之后，可以上锁，但是再也无法解锁成功，只能换一种方式。

https://github.com/torvalds/linux/blob/master/include/uapi/linux/mmc/ioctl.h

sudo ./mmc scr read /sys/bus/mmc/devices/mmc0:aaaa/
type: 'SD'
version: SD 3.0x
bus widths: 4bit, 1bit,

sudo ./mmc cmd42 123456 s /sys/bus/mmc/devices/mmc0:aaaa/
Set password: password=123456 ...

Modify the kernel module

因为第三方工具无法实现，现在只能修改内核模块了。本人的操作系统是Arch Linux，MMC驱动属于内核模块，所以不需要重新编译整个内核。而不是像Ubuntu直接builtin。

Arch Linux的内核模块目录如下，我的电脑是HP 840G3，SD卡使用PCI通道，主要会涉及下面三个驱动。

/lib/modules/$(uname -r)/kernel/drivers/mmc/core/mmc_core.ko.xz
/lib/modules/$(uname -r)/kernel/drivers/mmc/core/mmc_block.ko.xz
/lib/modules/$(uname -r)/kernel/drivers/mmc/host/rtsx_pci_sdmmc.ko.xz
/lib/modules/$(uname -r)/kernel/drivers/misc/cardreader/rtsx_pci.ko.xz

如果重新下载官方源码编译内核模块，会出现奇怪的错误。首先是vermagic匹配问题，内核版本，处理器特性不匹配则不允许挂载。因为Linux 3.7后加入了模块签名机制，可以通过modinfo查看系统自带的内核模块，没有签名会导致无法挂载。

$ modinfo mmc_core
filename:       /lib/modules/4.18.10-arch1-1-ARCH/kernel/drivers/mmc/core/mmc_core.ko.xz
license:        GPL
srcversion:     72D2DBEB18AB4B898BE5331
depends:
retpoline:      Y
intree:         Y
name:           mmc_core
vermagic:       4.18.10-arch1-1-ARCH SMP preempt mod_unload modversions
sig_id:         PKCS#7
signer:
sig_key:
sig_hashalgo:   md4
signature:      30:82:02:A5:06:09:2A:86:48:86:F7:0D:01:07:02:A0:82:02:96:30
                以下省略
parm:           use_spi_crc:bool

我们可以在/usr/lib/modules/$(uname -r)/build/目录进行编译，无需另外配置。只需要把MMC的core代码拷贝到目标目录下。就可以直接make，然后重新挂载MMC内核模块驱动。

cp ./core/* /usr/lib/modules/$(uname -r)/build/drivers/mmc/core/
make modules SUBDIRS=drivers/mmc/core
  Building modules, stage 2.
  MODPOST 7 modules
rmmod rtsx_pci_sdmmc && rmmod mmc_core
insmod /usr/lib/modules/$(uname -r)/build/drivers/mmc/core/mmc_core.ko
insmod /lib/modules/$(uname -r)/kernel/drivers/mmc/host/rtsx_pci_sdmmc.ko.xz

Add Unlock Function

在mmc_ops.h加入unlock_mmc声明

int unlock_mmc(struct mmc_card *card, u8* key_buf,int key_len);

随后编写具体实现，首先设定块长度，随后发送CMD42 ADTC命令。

int unlock_mmc(struct mmc_card *card, u8* key_buf,int key_len)
{
    int err;
    int block_size = key_len + 2;
    struct mmc_request mrq;
    struct mmc_command cmd_sbl;
    struct mmc_command cmd;
    struct mmc_data data;
    struct scatterlist sg;
    u8 *data_buf = NULL;

    /*------------CMD 16----------------*/
    // 1 byteflag + 1 byte password length + 16 bytes password
    memset(&cmd_sbl, 0, sizeof(struct mmc_command));

    cmd_sbl.opcode = MMC_SET_BLOCKLEN;
    cmd_sbl.arg = block_size;
    cmd_sbl.flags = MMC_RSP_R1 | MMC_CMD_AC;
    err = mmc_wait_for_cmd(card->host, &cmd_sbl, MMC_CMD_RETRIES);
    if (err)
    {
        printk("%s failed block_size=%d \n",__func__,block_size);
        goto out;
    }

    /*-----------CMD 42-----------------*/
    // CMD
    memset(&cmd, 0, sizeof(struct mmc_command));
    cmd.opcode = MMC_LOCK_UNLOCK; // CMD 42
    cmd.arg = 0;   // set all 0 for cmd42 arg
    cmd.flags = MMC_RSP_R1 | MMC_CMD_ADTC;

    // Data
    memset(&data, 0, sizeof(struct mmc_data));
    data.timeout_ns = (2*1000*1000*1000);
    data.blksz = block_size;
    data.blocks = 1;
    data.flags = MMC_DATA_WRITE;
    data.sg = &sg;
    data.sg_len = 1;
    mmc_set_data_timeout(&data, card);

    memset(&mrq, 0, sizeof(struct mmc_request));
    mrq.cmd = &cmd;
    mrq.data = &data;

    // Set Data for DMA
    data_buf = kzalloc(block_size, GFP_KERNEL);
    if (!data_buf)
    {
        printk("%s kzalloc failed\n",__func__);
        return -ENOMEM;
    }
    memset(data_buf, 0, block_size);
    data_buf[0] = 0;
    data_buf[1] = key_len;
    memcpy(data_buf + 2, key_buf, key_len);
    sg_init_one(&sg, data_buf, block_size);

    // request
    mmc_wait_for_req(card->host, &mrq);

    err = cmd.error;
    if (err)
        printk("%s: unlock cmd error %d\n", __func__, cmd.error);
    else
        err = data.error;

    if(err)
        goto out;
    printk("[SDLOCK] %s MMC_LOCK_UNLOCK \r\n",__func__);
out:
    kfree(data_buf);
    return err;
}

在sd.c的mmc_sd_setup_card之前，加入解锁功能。

// 检查是否上锁
u32 status = 0;
err = mmc_send_status(card, &status);
if (err)
    goto free_card;
if (status & R1_CARD_IS_LOCKED)
{
    mmc_card_set_encrypted(card);
    mmc_card_set_locked(card);
}

//方便调试
bool auto_unlock = true;
char unlock_pwd[16] = {0x5f,0xfc,0xa1,0x9f,0xfc,0xdb,0x58,0x99,0xa8,0x2c,0x4e,0x26,0x5f,0x99,0xc7,0x6b};

if (status & R1_CARD_IS_LOCKED) {
    if(auto_unlock)
    {
        //unlock sd card
        err = unlock_mmc(card, unlock_pwd, 16);
        if(err)
        {
            printk("[SDLOCK] %s unlock failed \n",__func__);
        }
        else
        {
            printk("[SDLOCK] %s unlock success \n",__func__);

            if(!mmc_card_locked(card))
            {
                auto_unlock = false;
                printk("[SDLOCK] %s unlock success and sdcard status is unlocked.\n",__func__);
            }
            else
            {
                printk("[SDLOCK] %s unlock success but sdcard status is locked, abnormal status.\n",__func__);
            }

        }
        //Check if card is locked
        err = mmc_send_status(card, &status);
        if (err)
        {
            printk("[SDLOCK] %s resume sd card exception /n",__func__);
            goto free_card;
        }
    }

    if (status & R1_CARD_IS_LOCKED)
    {
        printk(KERN_WARNING "[SDLOCK] sdcard is locked\n");
        goto done;
    }
    else
    {
        printk(KERN_WARNING "[SDLOCK] sdcard resume to unlocked\n");
    }
}
else
{
    printk(KERN_WARNING "[SDLOCK] sdcard is unlocked\n");
}

在card.h加入宏定义

#define mmc_card_mmc(c)     ((c)->type == MMC_TYPE_MMC)
#define mmc_card_sd(c)      ((c)->type == MMC_TYPE_SD)
#define mmc_card_sdio(c)    ((c)->type == MMC_TYPE_SDIO)
#define mmc_card_locked(c)  ((c)->state & MMC_STATE_LOCKED)
#define mmc_card_encrypt(c) ((c)->state & MMC_STATE_ENCRYPT)

#define MMC_STATE_PRESENT        (1<<0)       /* present in sysfs */
#define MMC_STATE_READONLY       (1<<1)       /* card is read-only */
#define MMC_STATE_BLOCKADDR      (1<<2)       /* card uses block-addressing */
#define MMC_CARD_SDXC            (1<<3)       /* card is SDXC */
#define MMC_CARD_REMOVED         (1<<4)       /* card has been removed */
#define MMC_STATE_DOING_BKOPS    (1<<5)       /* card is doing BKOPS */
#define MMC_STATE_LOCKED         (1<<12)      /* card is currently locked */
#define MMC_STATE_ENCRYPT        (1<<13)      /* card is currently encrypt */
#define MMC_STATE_ULTRAHIGHSPEED (1<<14)      /* card is in ultra high speed mode */

#define MMC_STATE_SUSPENDED      (1<<6)       /* card is suspended */
#define MMC_STATE_CMDQ           (1<<7)       /* card is in cmd queue mode */

#define MMC_LOCK_MODE_ERASE      (1<<3)
#define MMC_LOCK_MODE_LOCK       (1<<2)
#define MMC_LOCK_MODE_CLR_PWD    (1<<1)
#define MMC_LOCK_MODE_SET_PWD    (1<<0)
#define MMC_LOCK_MODE_UNLOCK     0

在core.c的mmc_wait_for_req_done插桩调试，随后通过dmesg查看记录

printk("[mmc] CMD %d err number: %d", mrq->cmd->opcode, mrq->cmd->error);

UHS-I

UHS-I(Ultra High Speed Phase I，超高速)是实现 SDHC 和 SDXC 卡高速数据传输的的总线接口。支持LVS，有七种操作模式。

DS - Default Speed up to 25MHz 3.3V signaling
HS - High Speed up to 50MHz 3.3V signaling
SDR12 - SDR up to 25MHz 1.8V signaling
SDR25 - SDR up to 50MHz 1.8V signaling
SDR50 - SDR up to 100MHz 1.8V signaling
SDR104 - SDR up to 208MHz 1.8V signaling
DDR - DDR up to 50MHz 1.8V signaling

首先用CMD0选择总线模式：SPI模式和SD模式。1.8V的信号模式只能进入SD模式。

uhs_command_sequence

可以看到并没有解锁成功，在CMD42出现了-22的错误。

$ dmesg -l 0,1,2,3,4,5,6,7
[62696.072102] [mmc] CMD 52 err number: -110
[62696.175620] [mmc] CMD 52 err number: -110
[62696.177592] [mmc] CMD 0 err number: 0
[62696.181590] [mmc] CMD 8 err number: 0
[62696.282033] [mmc] CMD 5 err number: -110
[62696.385534] [mmc] CMD 5 err number: -110
[62696.492060] [mmc] CMD 5 err number: -110
[62696.595641] [mmc] CMD 5 err number: -110
[62696.596514] [mmc] CMD 55 err number: 0
[62696.597226] [mmc] CMD 41 err number: 0
[62696.626822] [mmc] CMD 0 err number: 0
[62696.630372] [mmc] CMD 8 err number: 0
[62696.631051] [mmc] CMD 55 err number: 0
[62696.631758] [mmc] CMD 41 err number: 0
[62696.642862] [mmc] CMD 55 err number: 0
[62696.643590] [mmc] CMD 41 err number: 0
[62696.656036] [mmc] CMD 55 err number: 0
[62696.656752] [mmc] CMD 41 err number: 0
[62696.669827] [mmc] CMD 55 err number: 0
[62696.670711] [mmc] CMD 41 err number: 0
[62696.683086] [mmc] CMD 55 err number: 0
[62696.683976] [mmc] CMD 41 err number: 0
[62696.685084] [mmc] CMD 2 err number: 0
[62696.685781] [mmc] CMD 3 err number: 0
[62696.686493] [mmc] CMD 13 err number: 0
[62696.687827] [mmc] CMD 9 err number: 0
[62696.688551] [mmc] CMD 7 err number: 0
[62696.689227] [mmc] CMD 16 err number: 0
[62696.690033] [mmc] CMD 42 err number: -22
[62696.690041] unlock_mmc: unlock cmd error -22
[62696.690045] [SDLOCK] mmc_sd_init_card unlock failed
[62696.690749] [mmc] CMD 13 err number: 0
[62696.690755] [SDLOCK] sdcard is locked
[62696.690773] mmc0: new SD card at address f317
[62696.691709] mmcblk0: mmc0:f317 MF02B 1.88 GiB

Linux系统错误号-22即EINVAL。最后跟到了drivers/mmc/host/sdhci.c里

filename: drivers/mmc/core/core.c
functions:
mmc_wait_for_req -> __mmc_start_request -> host->ops->request


filename: drivers/mmc/host/rtsx_pci_sdmmc.c
functions:
sdmmc_request -> schedule_work -> sd_request -> sd_send_cmd_get_rsp -> sd_normal_rw -> sd_write_data -> rtsx_pci_write_ppbuf -> rtsx_pci_send_cmd


filename: drivers/misc/cardreader/rtsx_pcr.c
rtsx_pci_write_ppbuf
rtsx_pci_add_cmd
rtsx_pci_send_cmd

因为是笔记本电脑，所以相关命令在Realtek的SD读卡器驱动里，而在手机中是drivers/mfd/rtsx_pcr.c。

int rtsx_pci_send_cmd(struct rtsx_pcr *pcr, int timeout)
{
    ...
    if (pcr->trans_result == TRANS_RESULT_FAIL)
        err = -EINVAL;
    ...
}

cp ./drivers/misc/cardreader/* /usr/lib/modules/$(uname -r)/build/drivers/misc/cardreader/
make modules SUBDIRS=drivers/misc/cardreader

通过打印rtsx_pci_add_cmd的参数，可以确定传入的key没有错误

sd_cmd_set_sd_cmd

[75754.016095] [rtsx] cmd_type:1, reg_addr:fda9, ptr:0x50, val:2108292944 SD_CMD0 16
[75754.016100] [rtsx] cmd_type:1, reg_addr:fdaa, ptr:0x0, val:2108358400  SD_CMD1
[75754.016104] [rtsx] cmd_type:1, reg_addr:fdab, ptr:0x0, val:2108423936  SD_CMD2
[75754.016111] [rtsx] cmd_type:1, reg_addr:fdac, ptr:0x0, val:2108489472  SD_CMD3
[75754.016115] [rtsx] cmd_type:1, reg_addr:fdad, ptr:0x12, val:2108555026 SD_CMD4 0x12

sd_send_cmd_get_rsp

[75754.016119] [rtsx] cmd_type:1, reg_addr:fda1, ptr:0x1, val:2107768577  WRITE_REG_CMD SD_CFG2
[75754.016122] [rtsx] cmd_type:1, reg_addr:fd5b, ptr:0x1, val:2103116033  CARD_DATA_SOURCE
[75754.016126] [rtsx] cmd_type:1, reg_addr:fdb3, ptr:0x88, val:2108948360  WRITE_REG_CMD SD_TRANSFER
[75754.016130] [rtsx] cmd_type:2, reg_addr:fdb3, ptr:0x60, val:-1112317856 CHECK_REG_CMD SD_TRANSFER

[75754.016134] [rtsx] cmd_type:0, reg_addr:fda9, ptr:0x0, val:1034485760  sd_cmd_set_sd_cmd 0
[75754.016138] [rtsx] cmd_type:0, reg_addr:fdaa, ptr:0x0, val:1034551296  SD_CMD1
[75754.016142] [rtsx] cmd_type:0, reg_addr:fdab, ptr:0x0, val:1034616832  SD_CMD1
[75754.016146] [rtsx] cmd_type:0, reg_addr:fdac, ptr:0x0, val:1034682368  SD_CMD2
[75754.016150] [rtsx] cmd_type:0, reg_addr:fdad, ptr:0x0, val:1034747904  SD_CMD3
[75754.016153] [rtsx] cmd_type:0, reg_addr:fda3, ptr:0x0, val:1034092544  SD_STAT1


sd_cmd_set_sd_cmd

[75754.016787] [SDLOCK] unlock_mmc MMC_SET_BLOCKLEN 18
[75754.016820] [rtsx] cmd_type:1, reg_addr:fda9, ptr:0x6a, val:2108292970 SD_CMD0 42
[75754.016823] [rtsx] cmd_type:1, reg_addr:fdaa, ptr:0x0, val:2108358400  SD_CMD1
[75754.016826] [rtsx] cmd_type:1, reg_addr:fdab, ptr:0x0, val:2108423936  SD_CMD2
[75754.016829] [rtsx] cmd_type:1, reg_addr:fdac, ptr:0x0, val:2108489472  SD_CMD3
[75754.016831] [rtsx] cmd_type:1, reg_addr:fdad, ptr:0x0, val:2108555008  SD_CMD4

[75754.016834] [rtsx] cmd_type:1, reg_addr:fda1, ptr:0x1, val:2107768577  WRITE_REG_CMD SD_CFG2
[75754.016837] [rtsx] cmd_type:1, reg_addr:fd5b, ptr:0x1, val:2103116033  CARD_DATA_SOURCE
[75754.016839] [rtsx] cmd_type:1, reg_addr:fdb3, ptr:0x88, val:2108948360 WRITE_REG_CMD SD_TRANSFER
[75754.016842] [rtsx] cmd_type:2, reg_addr:fdb3, ptr:0x60, val:-1112317856 CHECK_REG_CMD SD_TRANSFER

[75754.016845] [rtsx] cmd_type:0, reg_addr:fda9, ptr:0x0, val:1034485760  sd_cmd_set_sd_cmd 0
[75754.016848] [rtsx] cmd_type:0, reg_addr:fdaa, ptr:0x0, val:1034551296  SD_CMD1
[75754.016851] [rtsx] cmd_type:0, reg_addr:fdab, ptr:0x0, val:1034616832  SD_CMD2
[75754.016854] [rtsx] cmd_type:0, reg_addr:fdac, ptr:0x0, val:1034682368  SD_CMD3
[75754.016856] [rtsx] cmd_type:0, reg_addr:fdad, ptr:0x0, val:1034747904  SD_CMD4
[75754.016862] [rtsx] cmd_type:0, reg_addr:fda3, ptr:0x0, val:1034092544  SD_STAT1

write data

[75754.017492] [rtsx] cmd_type:1, reg_addr:fa00, ptr:0x0, val:2046885632
[75754.017496] [rtsx] cmd_type:1, reg_addr:fa01, ptr:0x10, val:2046951184
[75754.017499] [rtsx] cmd_type:1, reg_addr:fa02, ptr:0x5f, val:2047016799
[75754.017502] [rtsx] cmd_type:1, reg_addr:fa03, ptr:0xfc, val:2047082492
[75754.017505] [rtsx] cmd_type:1, reg_addr:fa04, ptr:0xa1, val:2047147937
[75754.017508] [rtsx] cmd_type:1, reg_addr:fa05, ptr:0x9f, val:2047213471
[75754.017511] [rtsx] cmd_type:1, reg_addr:fa06, ptr:0xfc, val:2047279100
[75754.017513] [rtsx] cmd_type:1, reg_addr:fa07, ptr:0xdb, val:2047344573
[75754.017518] [rtsx] cmd_type:1, reg_addr:fa08, ptr:0x58, val:2047410008
[75754.017521] [rtsx] cmd_type:1, reg_addr:fa09, ptr:0x99, val:2047475609
[75754.017524] [rtsx] cmd_type:1, reg_addr:fa0a, ptr:0xa8, val:2047541160
[75754.017526] [rtsx] cmd_type:1, reg_addr:fa0b, ptr:0x2c, val:2047606572
[75754.017529] [rtsx] cmd_type:1, reg_addr:fa0c, ptr:0x4e, val:2047672142
[75754.017531] [rtsx] cmd_type:1, reg_addr:fa0d, ptr:0x26, val:2047737638
[75754.017534] [rtsx] cmd_type:1, reg_addr:fa0e, ptr:0x5f, val:2047803231
[75754.017537] [rtsx] cmd_type:1, reg_addr:fa0f, ptr:0x99, val:2047868825
[75754.017539] [rtsx] cmd_type:1, reg_addr:fa10, ptr:0xc7, val:2047934407
[75754.017542] [rtsx] cmd_type:1, reg_addr:fa11, ptr:0x6b, val:2047999851

sd_cmd_set_block_len

[75754.017569] [rtsx] cmd_type:1, reg_addr:fdb1, ptr:0x1, val:2108817153  SD_BLOCK_CNT_L 1
[75754.017572] [rtsx] cmd_type:1, reg_addr:fdb2, ptr:0x0, val:2108882688  SD_BLOCK_CNT_H
[75754.017575] [rtsx] cmd_type:1, reg_addr:fdaf, ptr:0x12, val:2108686098 SD_BYTE_CNT_L  18
[75754.017577] [rtsx] cmd_type:1, reg_addr:fdb0, ptr:0x0, val:2108751616  SD_BYTE_CNT_H

[75754.017580] [rtsx] cmd_type:1, reg_addr:fda1, ptr:0x0, val:2107768576  WRITE_REG_CMD SD_CFG2
[75754.017583] [rtsx] cmd_type:1, reg_addr:fdb3, ptr:0x81, val:2108948353 WRITE_REG_CMD SD_TRANSFER
[75754.017585] [rtsx] cmd_type:2, reg_addr:fdb3, ptr:0x40, val:-1112326080 CHECK_REG_CMD SD_TRANSFER

Unlocking SD Card by Raspberry Pi

sudo dd bs=4M if=/home/cygnus/IMG/2018-06-27-raspbian-stretch-lite/2018-06-27-raspbian-stretch-lite.img of=/dev/mmcblk0 status=progress conv=fsync

下载对应版本的树莓派源代码，并把工具链加入环境变量

git clone --depth=1 --branch rpi-4.14.y https://github.com/raspberrypi/linux
export PATH=$PATH:/home/cygnus/git/rapi-tools/arm-bcm2708/gcc-linaro-arm-linux-gnueabihf-raspbian-x64/bin

使用BCM2709配置，并在MENU CONFIG里把SD卡驱动和MMC驱动变为内核模块形式。最后编译zImage，模块，设备树，然后更新SD卡里的文件。 kernel.img is used by RPi 1B, 1A, A+, B+, 2B (first version) Z, Z (with camera), ZW, CM1 kernel7.img is used by the RPi2B2, RPi3B, CM3 and CM3L.

KERNEL=kernel7
make ARCH=arm CROSS_COMPILE=arm-linux-gnueabihf- bcm2709_defconfig
make ARCH=arm CROSS_COMPILE=arm-linux-gnueabihf- menuconfig
make ARCH=arm CROSS_COMPILE=arm-linux-gnueabihf- -j16 zImage modules dtbs
sudo make ARCH=arm CROSS_COMPILE=arm-linux-gnueabihf- INSTALL_MOD_PATH=/run/media/cygnus/rootfs modules_install

更新内核

sudo cp /run/media/cygnus/boot/$KERNEL.img /run/media/cygnus/boot/$KERNEL-backup.img
sudo cp arch/arm/boot/zImage /run/media/cygnus/boot/$KERNEL.img

更新设备树

sudo cp arch/arm/boot/dts/*.dtb /run/media/cygnus/boot/
sudo cp arch/arm/boot/dts/overlays/*.dtb* /run/media/cygnus/boot/overlays/

在boot config加入下面配置

dtoverlay=sdio,poll_once=off

Name	SD Card	Raspberry Pi Pin Num
VCC	4	17
GND	6	20
CLK/SCLK	5	15
CMD/MOSI	2	16
DAT0/MISO	7	18
DAT1	8	22
DAT2	9	37
DAT3/CS	1	13

Reference

SD Simplified Specifications

Wiki - Secure_Digital

SD Standard Overview
